Sq Ft
848 FT²

Bed
1

Bath
1

Stories
1

Garage
0

Depth
34'

Width
40'

On Sale
$654.50
$770.00

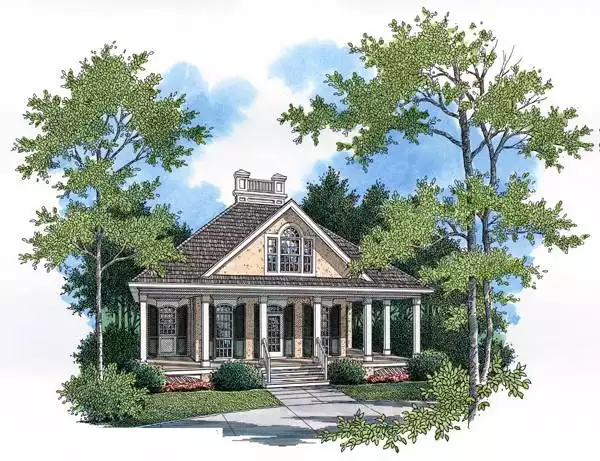

Front Rendering

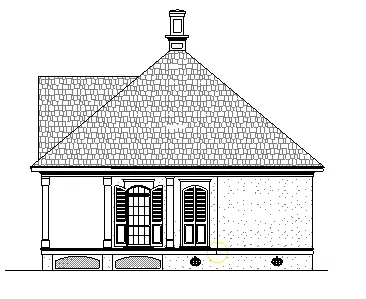

Right Side Elevation

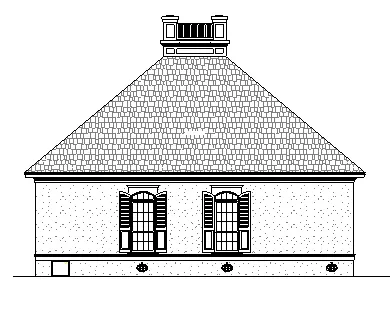

Rear Exterior

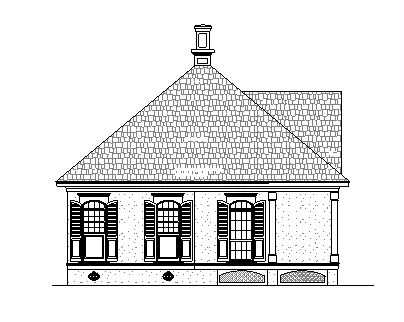

Left side elevation

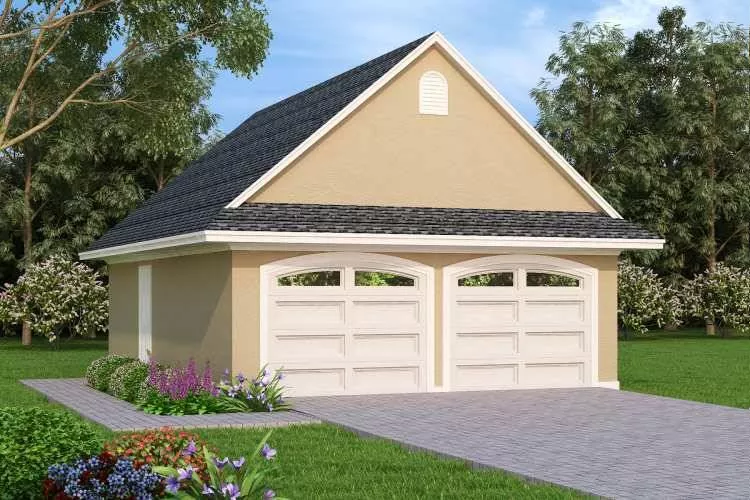

Optional detached garage elevation

View All 5 Images | Photographs may reflect modified home

Sq Ft

848 FT²

From

$654.50

Bed

Bath

Stories

Garage

Depth

34'

Width

40'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

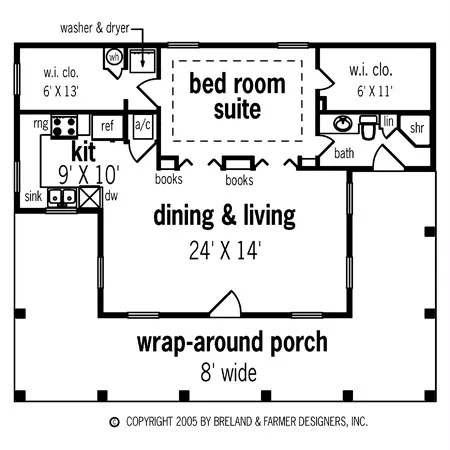

First Floor Plan

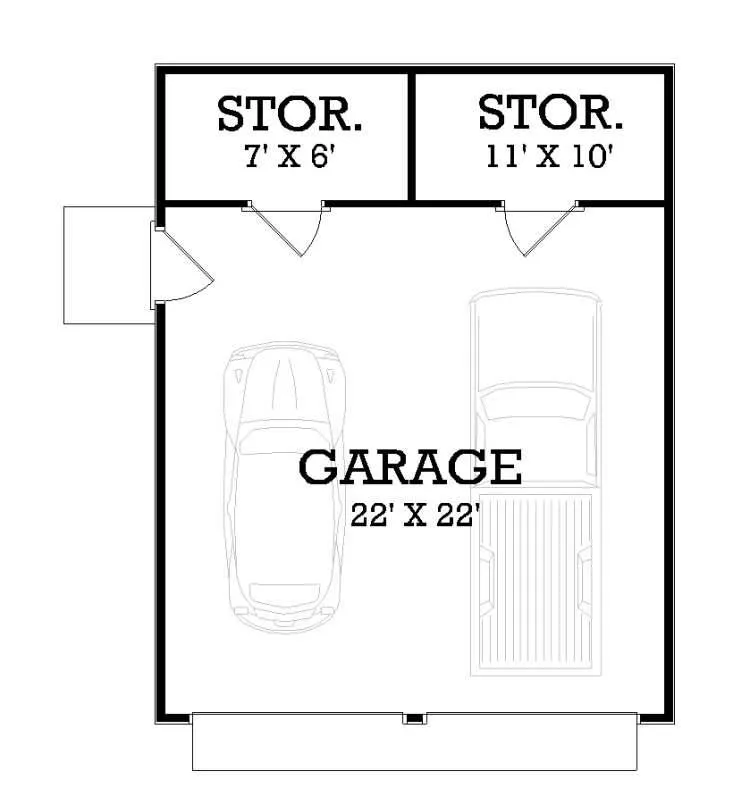

Optional detached garage

First Floor Plan

Optional detached garage

About This Plan

This charming cottage is a perfect addition to your existing home for guest or
live-in parents. It is also ideally suited for commercial as for rental accommodations. The wrap-a-round porch creates a warm and inviting entry and it is a great place for spending a relaxing evening. The open living and dining room provides a functional and spacious interior. Louver bi-folding doors open to the bedroom to further expand the openness of the plan. There is abundant storage space supplied by two king size walk-in closets. Typical ceilings are 10 high. The master bedroom has a tray ceiling for added interest. Operable wood shutters, columns, window and door transoms and arched door trim provide interesting detail to the exterior.

FEATURES & DETAILS

Bedroom features

Primary Bdrm Main Floor
Walk-in Closet

Exterior features

Wraparound Porch

Foundation Options

Crawlspace
Slab

Lot Options

Suited for narrow lot

Additional features

Laundry 1st Fl
Open Floor Plan

Garage Options

None

848 Ft

Total Heated

Bedrooms

Bathrooms

Garage

Stories

40' 0"

Width

34' 0"

Depth

10' 0"

Main Floor Ceiling

10/12

Primary Roof Pitch

10:12

Gable Roof Pitch

Single

Dwelling Number

Unheated Living Space

512 Ft

Porch

Exterior Styles

Cottage

Country

Southern

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$400

PDF Bid Set
PDFs NOW!™

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

$400

$770

PDF Single Build
PDFs NOW!™

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$770

$855

4 Printed Sets

Four printed sets of construction drawings shipped and received in 3-5 business days

$855

$900

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$900

$1,010

8 Printed Sets + PDF
PDFs NOW!™

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS eight printed sets shipped and delivered 3-5 business days.

$1,010

8 Printed Sets

Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

$1,010

$1,340

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$1,340

Need To Reverse Plan? (Optional)

$125

Readable Reverse

Reverse house plans with readable text and dimensions

$125

Select Foundation Option

Add-Ons (Optional)

	Ground shipping within the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your house plan
	Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.

BEST PRICE GUARANTEE

find the same house plan (modifications included!) and package for less on another site, show us the URL and we'll give you the difference plus an additional 5% back.

100% SATISFACTION GUARANTEE

We offer a one-time, 14-day exchange policy for unused, non-electronic plan packages in the event you aren't satisfied with your first selection.

Customer Reviews of House Plan 5619

7/7/2012

Cathleen of Liberty Hill, TX

Customer Review:

We are so excited that we finally found and purchased our dream home. Now we just need to build our dream home. I hoping to start building very soon...I promise.
