Sq Ft
2,233 FT²
Bed
3
Bath
2.5
Stories
1
Garage
2
Depth
69' 10"
Width
84' 4"
On Sale
$1,568.25
$1,845.00
© copyright by designer

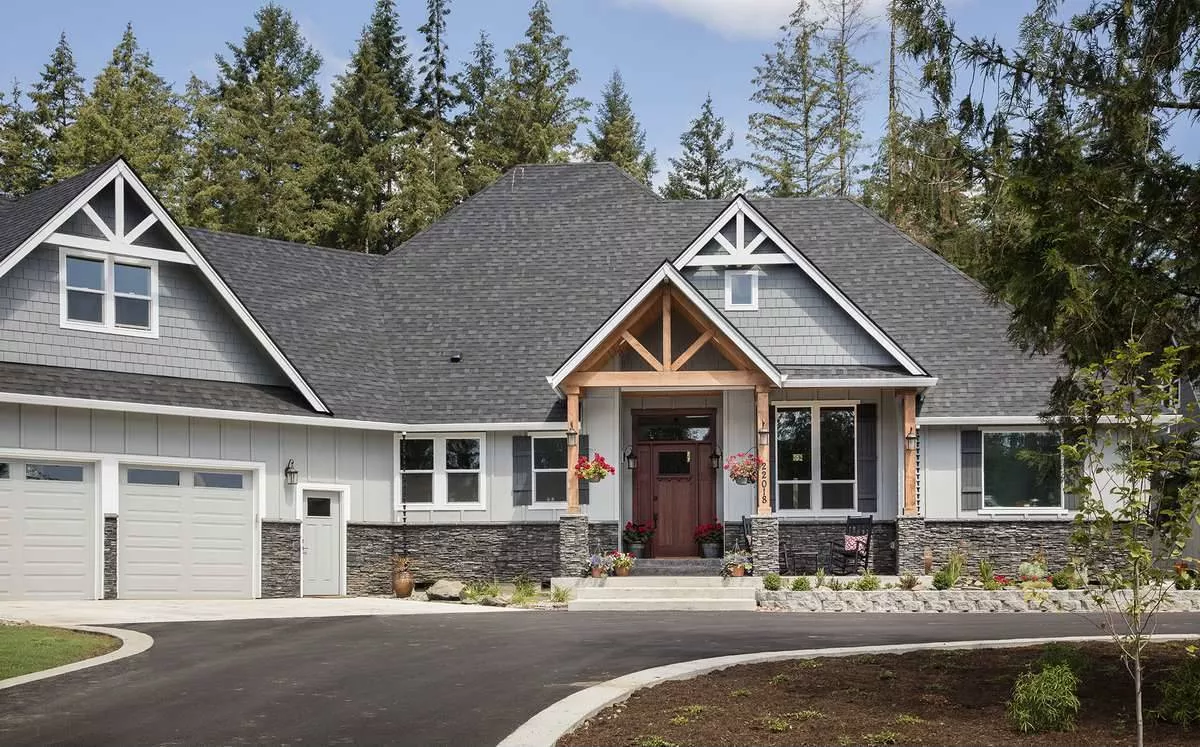

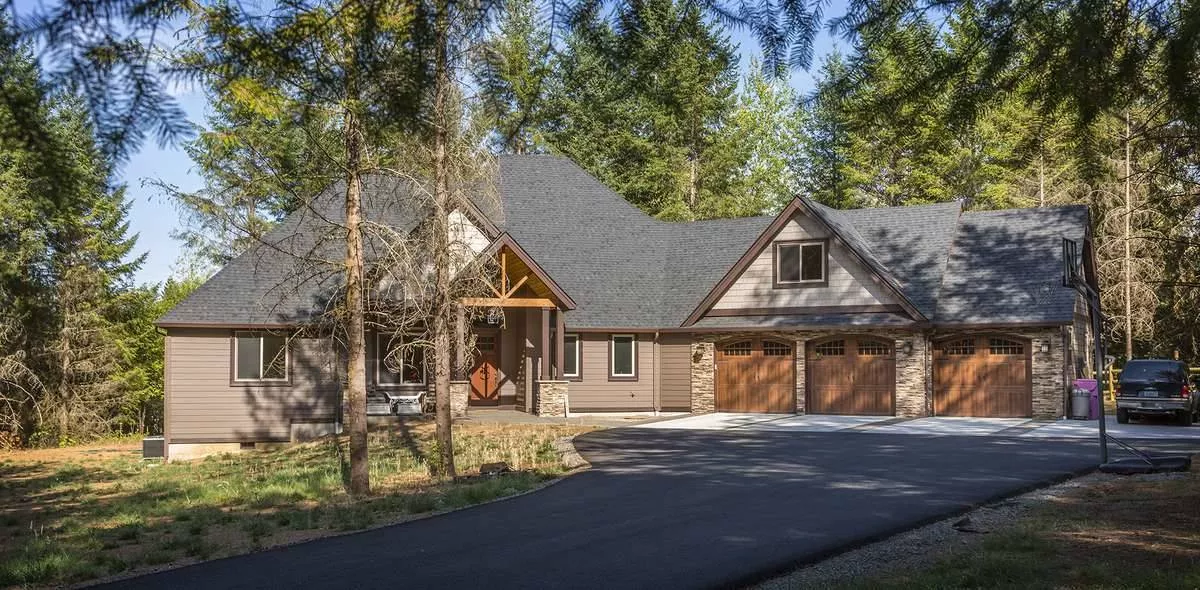

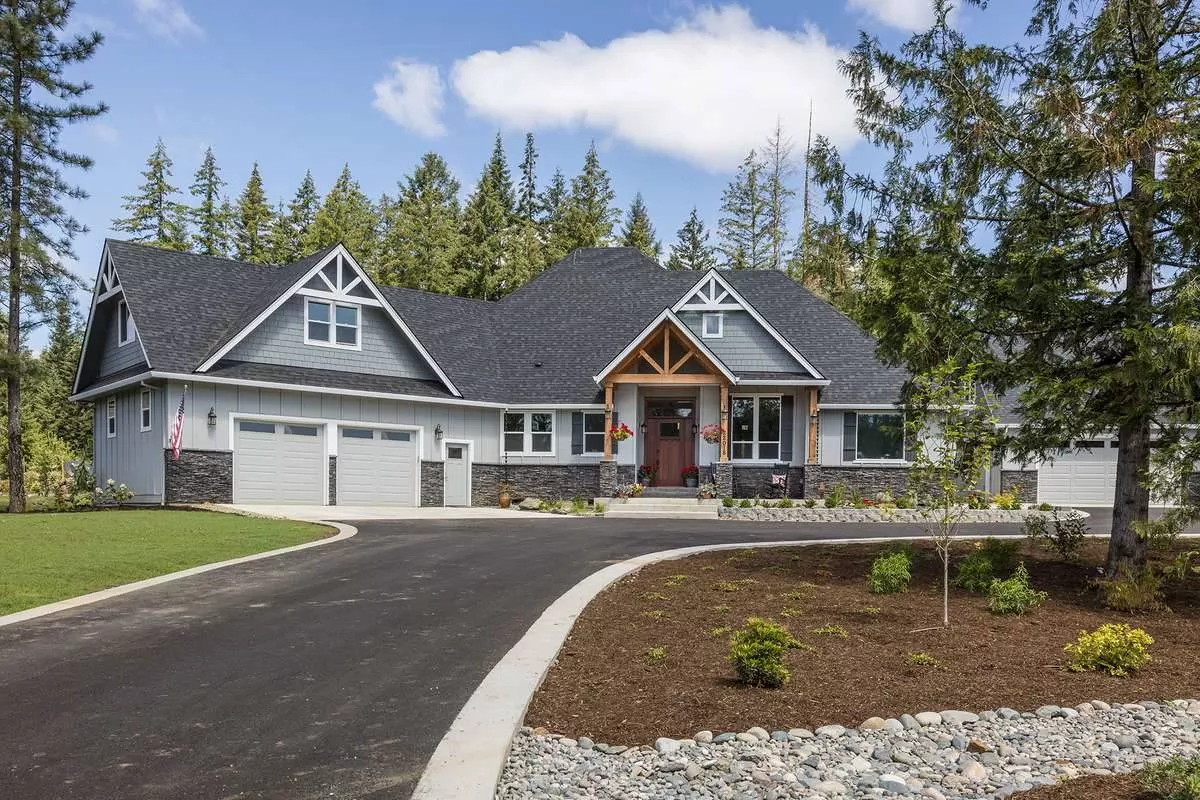

View All 5 Images | Photographs may reflect modified home
Sq Ft
2,233 FT²
From
$1,568.25
Bed
3
Bath
2.5
Stories
1
Garage
2
Depth
69' 10"
Width
84' 4"

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

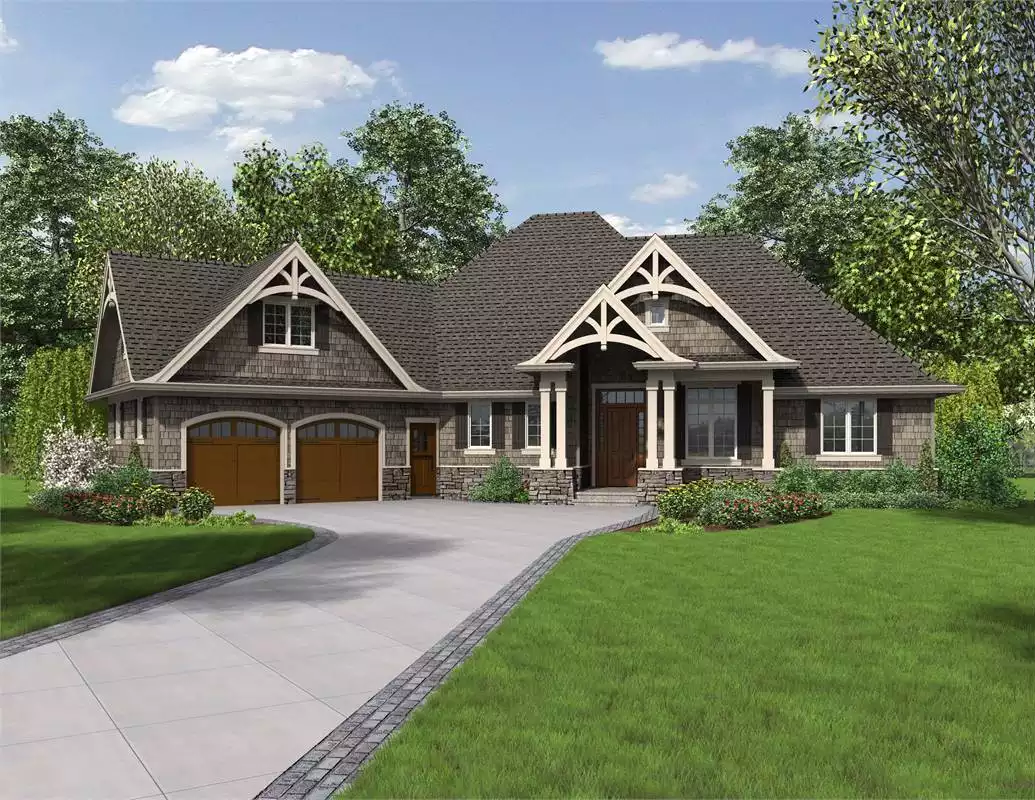

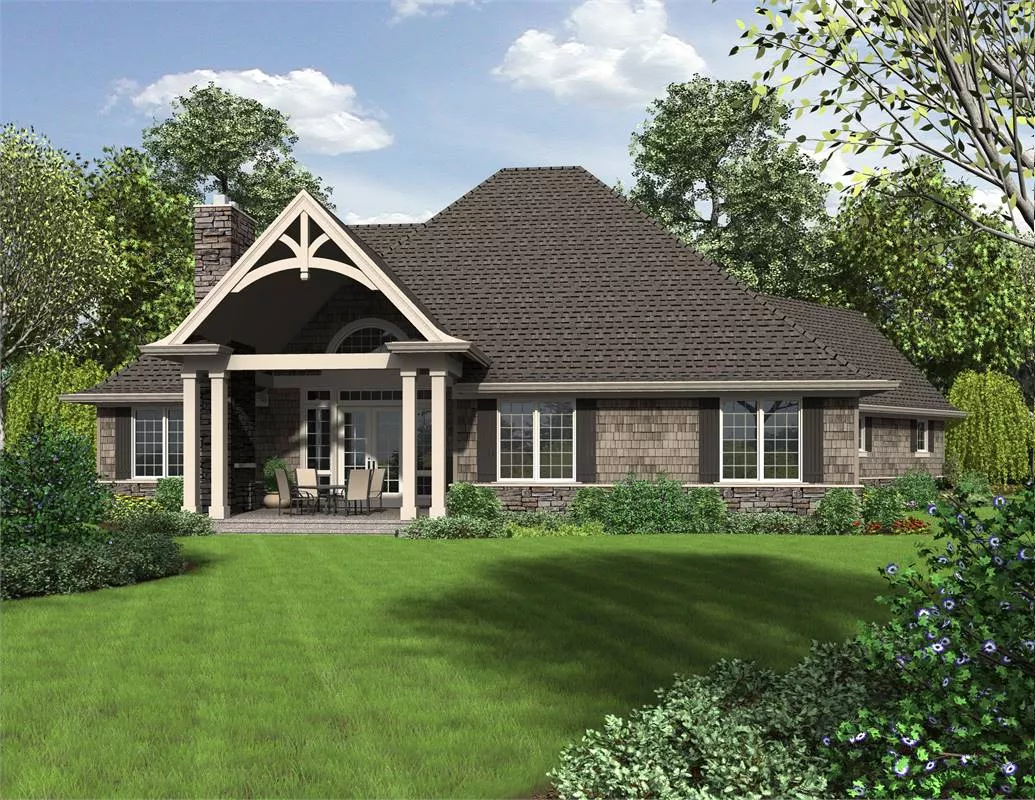

With a two-car garage angling off to the left, the Ripleys curved faade seems to embrace the visitor. A door next to the garage acts as an informal entrance; under a covered porch with two beautiful gables sits the front door. Entering here, you find yourself in a lovely foyer with eleven-foot ceilings. Walking forward, you enter the vaulted great room, which flows out, through a set of double doors, to the vaulted outdoor living room. A vision enters your mind of a late summer shindig, friends gathering around cozy fires crackling in the fireplaces here, fending off the first hints of winters chill. Both the great room and the outdoor living room boast a fireplace. The great room also has a built-in media center.

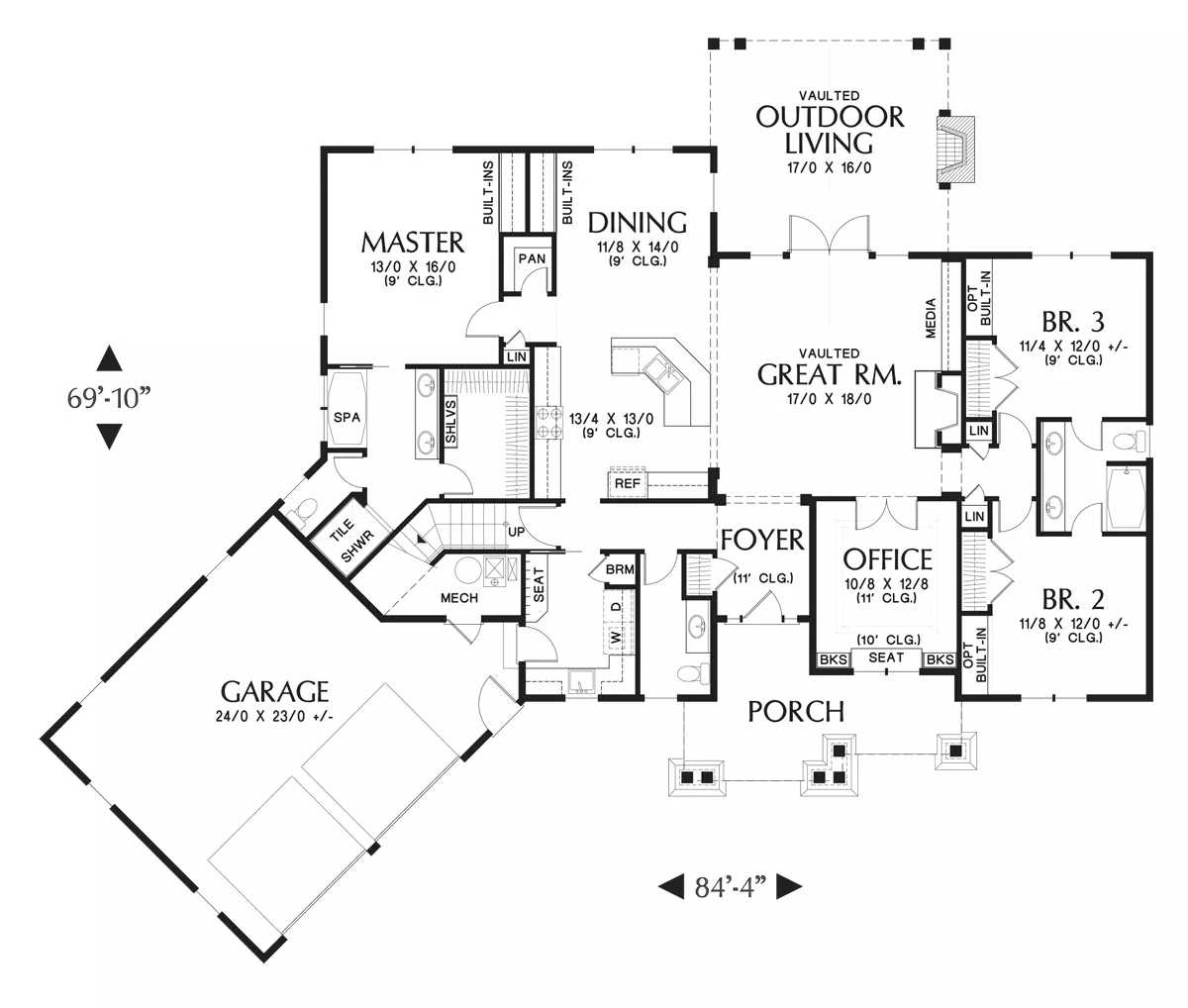

The rest of the home radiates off this stunning shared living space. Walking in a clockwise pattern from the foyer, the main floor includes an office with a window seat looking over the front porch, two bedrooms with a Jack-and-Jill bathroom in-between, the outdoor living room, the open dining room and kitchen, and in the back corner, the master bedroom. Wandering back to the entry foyer, you see a hall off to the left; this contains a half bath, the utility room with its washer and dryer, stairs to the upper story, and a door to the garage.


FEATURES & DETAILS

Kitchen features
Country Kitchen
Kitchen Island
Walk-in Pantry
Bedroom features
Double Vanity Sink
Primary Bdrm Main Floor
Separate Tub and Shower
Split Bedrooms
Walk-in Closet
Exterior features
Covered Front Porch
Covered Rear Porch
Front Porch
Foundation Options
Basement
Crawlspace
Slab
Lot Options
Suited for view lot
Additional features
2 Story Volume
Bonus Room
Dining Room
Fireplace
Foyer
Great Room
Home Office
Laundry 1st Fl
Mud Room
Open Floor Plan
Vaulted Ceilings
Garage Location
Front
Garage Options
Attached
Front-entry
Oversized
2,659 Ft
2
Total Structure
2,233 Ft
2
Total Heated
3
Bedrooms
2.5
Bathrooms
2
Garage
1
Stories
84' 4"
Width
69' 10"
Depth
31' 0"
Height
Varies' 0"
Main Floor Ceiling
9'' 0"
Upper Floor Ceiling
2x6
Framing
Truss
Roof Framing
12/12
Primary Roof Pitch
Single
Dwelling Number
2nd Floor
Bonus Access

Unheated Living Space
639 Ft
2
Garage
272 Ft
2
Patio
426 Ft
2

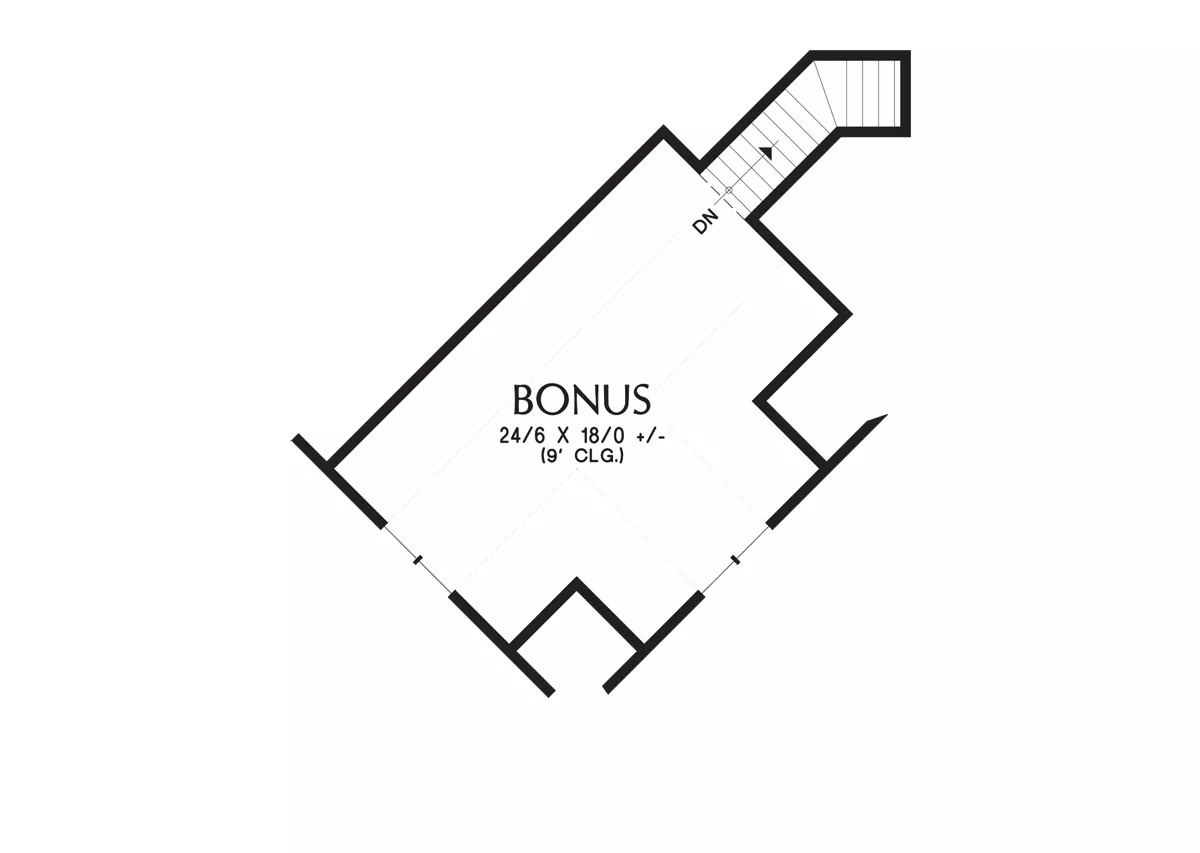

Bonus Room


Plan Package Options

 Select Plan Package
$1,845
PDF Single Build
PDFs NOW!™
States N/A: OR,WA

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,845
$2,045
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$2,045
$2,095
5 Printed Sets + PDF
PDFs NOW!™
States N/A: OR,WA

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

$2,095
$3,690
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$3,690
 Need To Reverse Plan? (Optional)
$225
Readable Reverse
PDFs NOW!™

Reverse house plans with readable text and dimensions

$225
  Select Foundation Option
  Add-Ons (Optional)

Ground shipping within the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your house plan

Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.

BEST PRICE GUARANTEE

find the same house plan (modifications included!) and package for less on another site, show us the URL and we'll give you the difference plus an additional 5% back.

100% SATISFACTION GUARANTEE

We offer a one-time, 14-day exchange policy for unused, non-electronic plan packages in the event you aren't satisfied with your first selection.

Customer Reviews of House Plan 5180
6/15/2018
Sergio of Wallis, TX
Customer Review:
Had great experience from day one. The plans were modified as I requested. Zach and Jeremy did an excellent job with my modifications to the plan. Questions that came up during the building process were answered and I was able to get home finished. Thank you all. Sergio
