Recently Viewed Plans | Advanced Plan Search

Sq Ft
2,262 FT²

Bed
3

Bath
2.5

Stories
1

Garage
3

Depth
54' 1"

Width
83' 7"

On Sale
$956.25
$1,125.00

Sq Ft

2,262 FT²

From

$956.25

Bed

Bath

2.5

Stories

Garage

Depth

54' 1"

Width

83' 7"

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

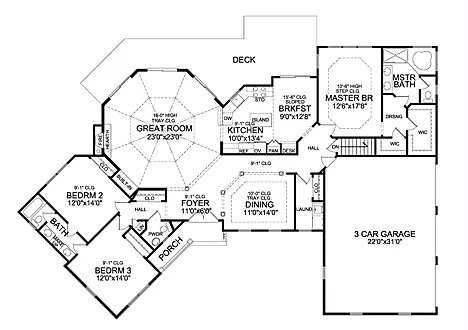

First Floor Plan

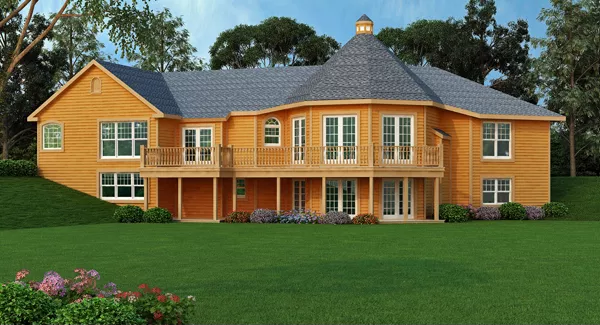

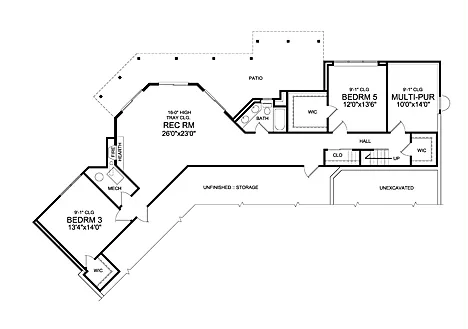

Optional Walk-out Basement Plan

First Floor Plan

Optional Walk-out Basement Plan

About This Plan

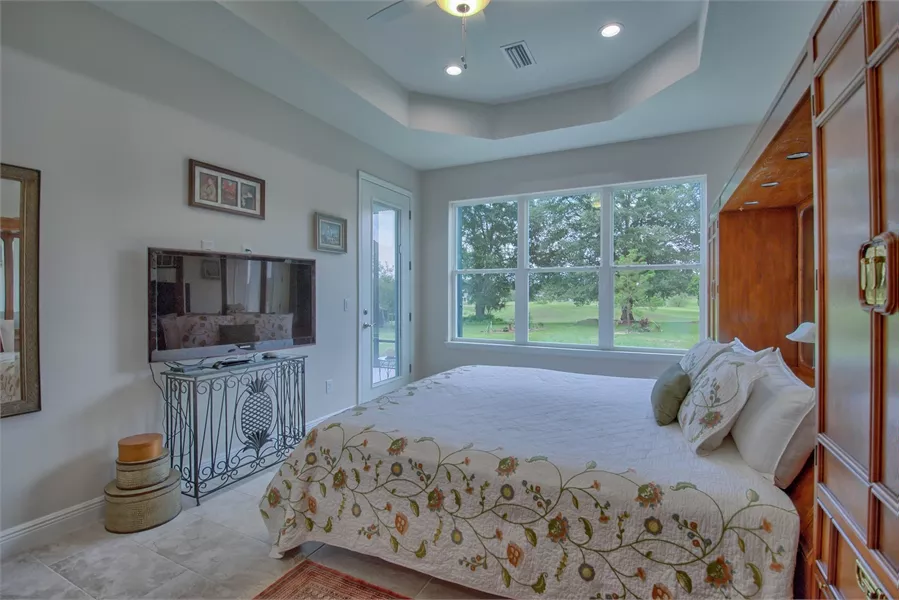

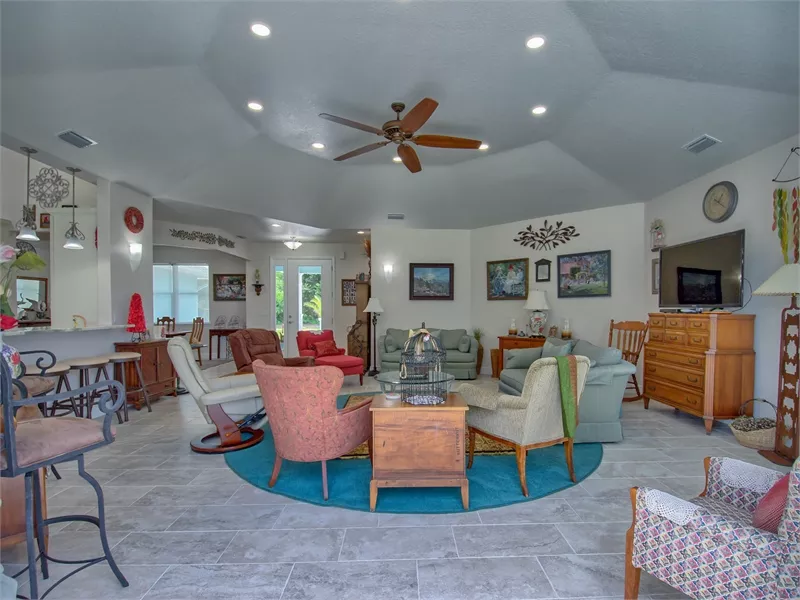

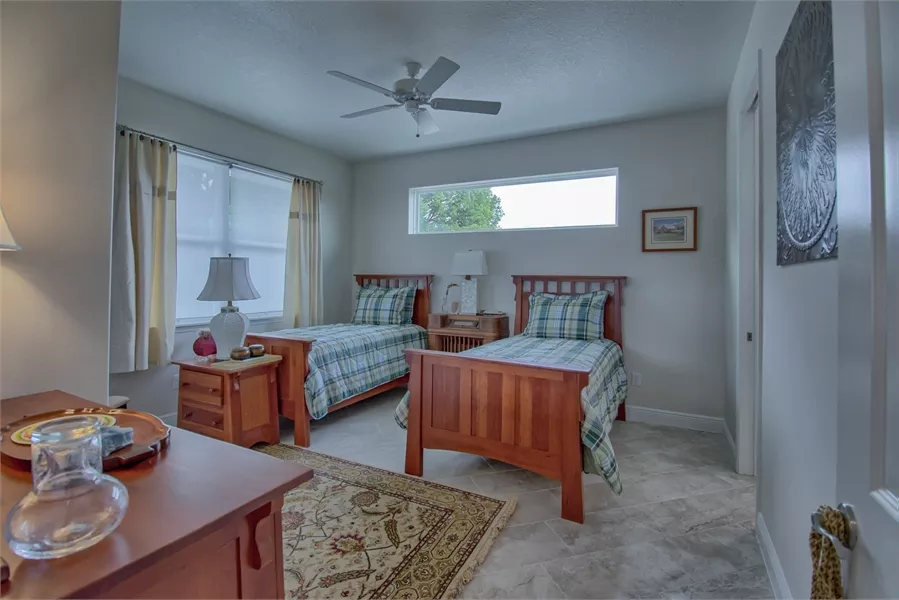

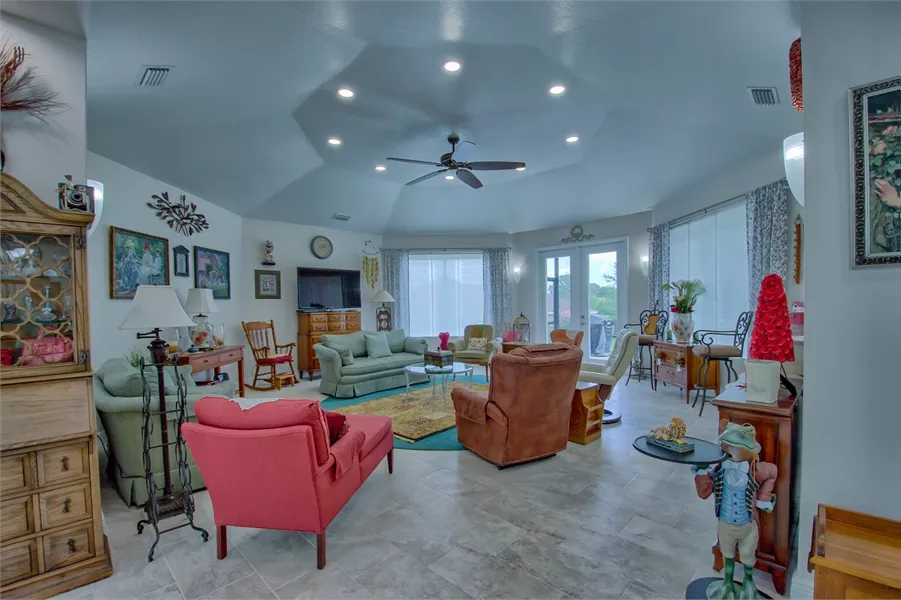

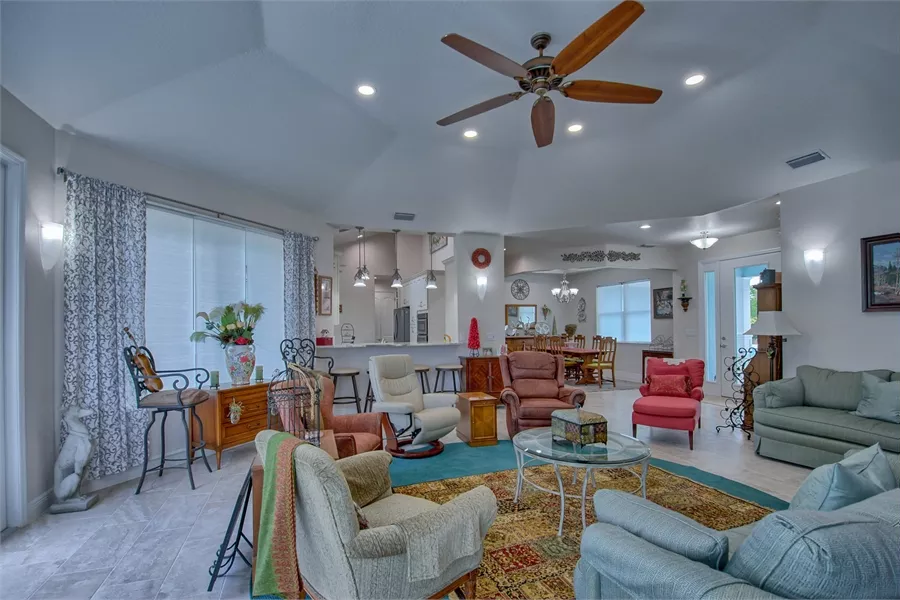

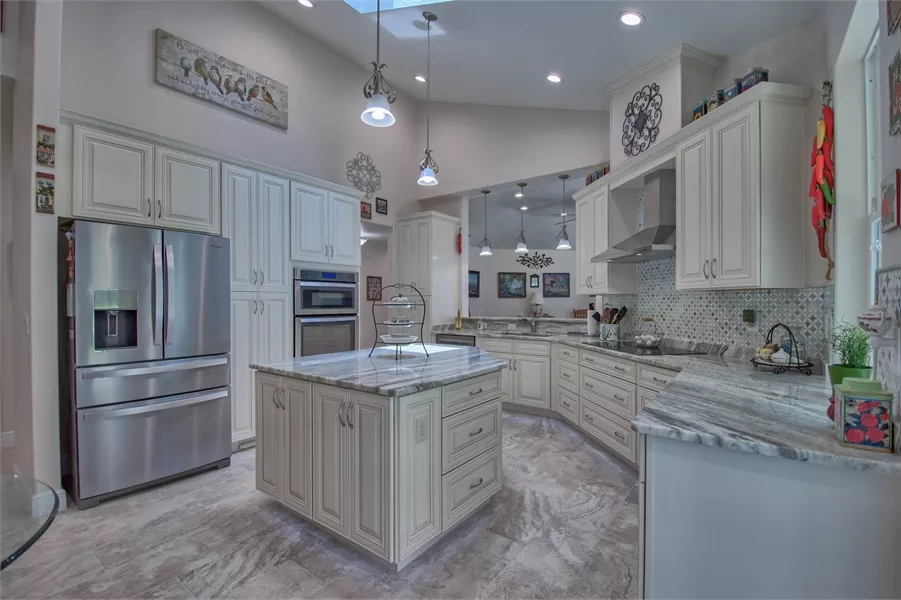

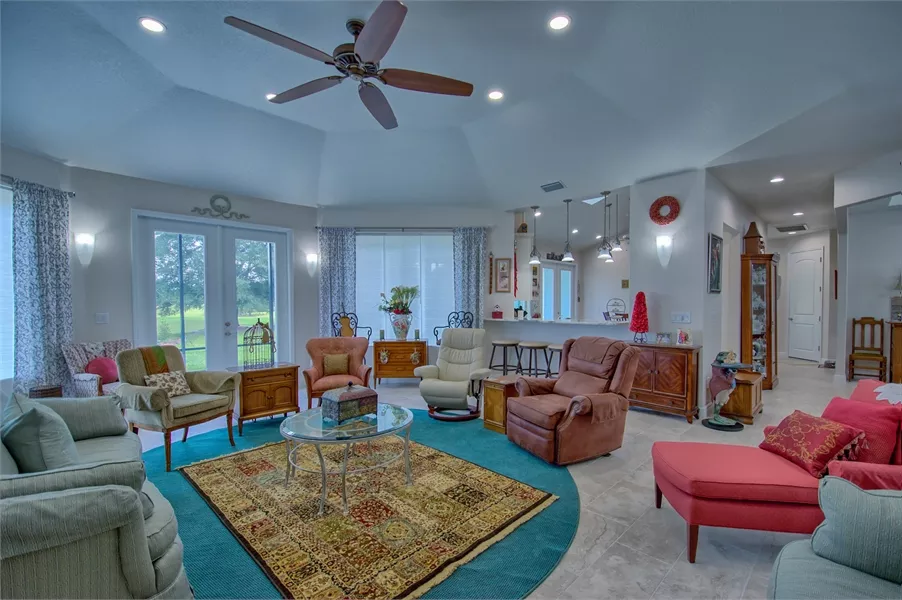

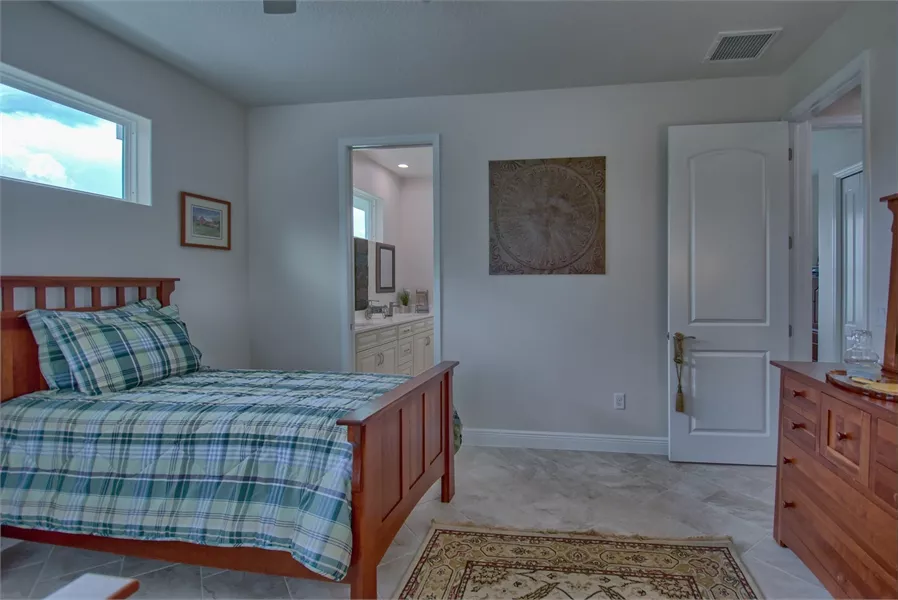

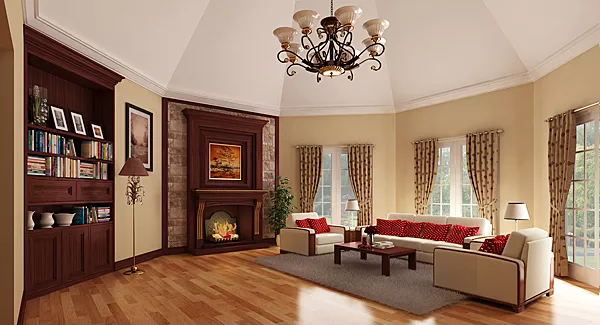

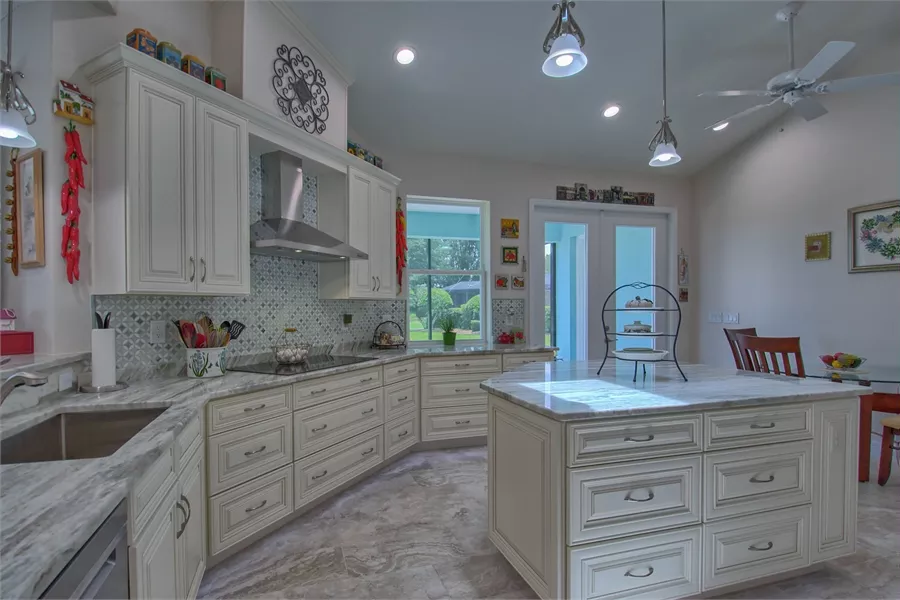

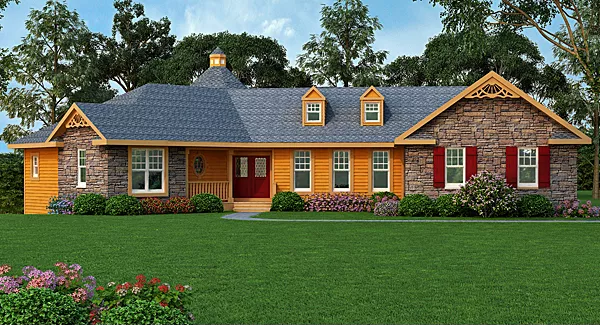

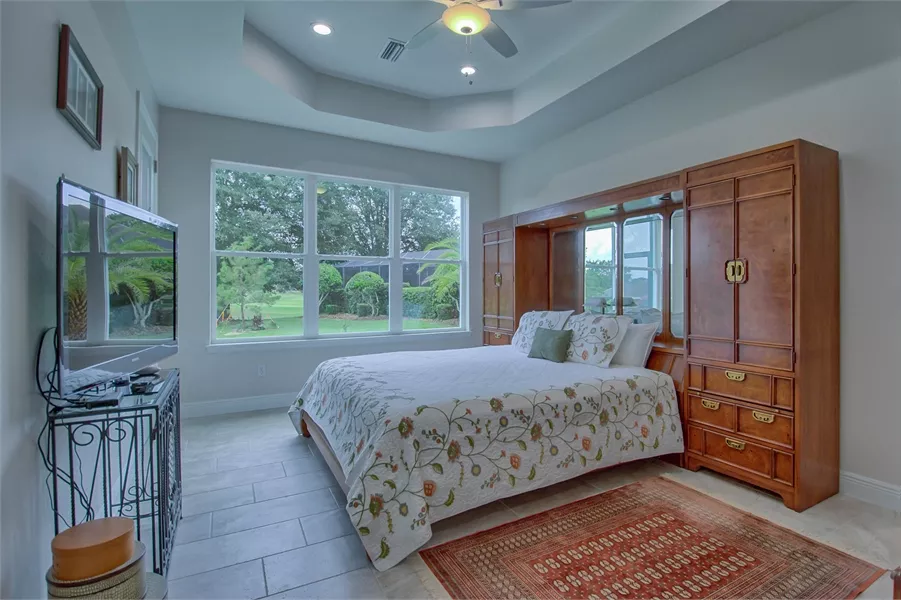

This craftsman styled ranch is exciting in so many aspects. It is well suited to irregular shaped lots and sloping lots. There is an optional walk-out basement. It is a split bedroom plan with a great private master suite and the other two bedrooms share a Jack and Jill bath. There are large closets throughout. The interior highlight is a hexagon shaped Great Room with a soaring vaulted ceiling following the shape of the room. It is an open plan with great vistas throughout. The kitchen opens to the great room with a breakfast counter. The breakfast rm., master bedroom and dining room also feature high ceilings.

FEATURES & DETAILS

Kitchen features

Country Kitchen

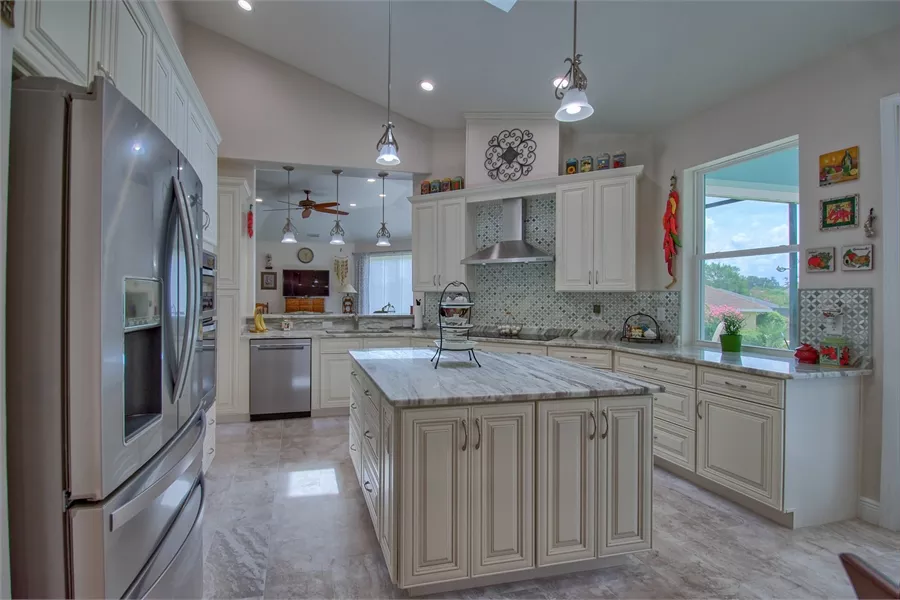

Kitchen Island
Nook / Breakfast Area
Peninsula / Eating Bar

Bedroom features

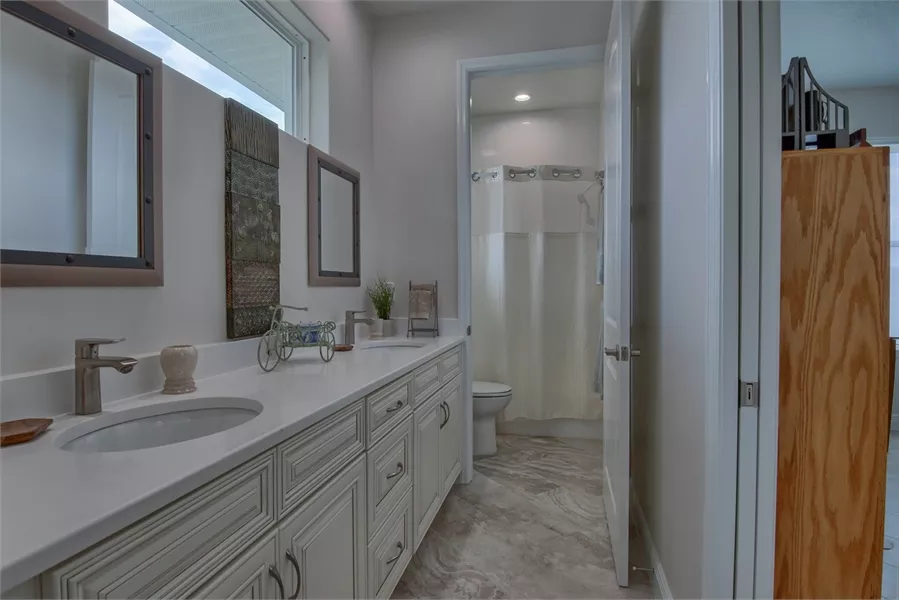

Double Vanity Sink
His and Hers Primary Closets
Primary Bdrm Main Floor
Separate Tub and Shower
Split Bedrooms
Walk-in Closet

Exterior features

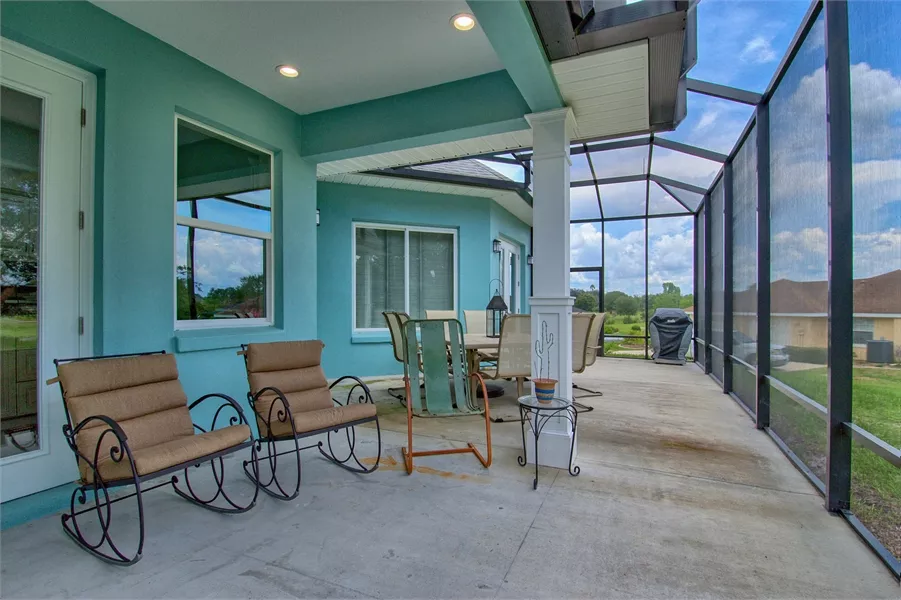

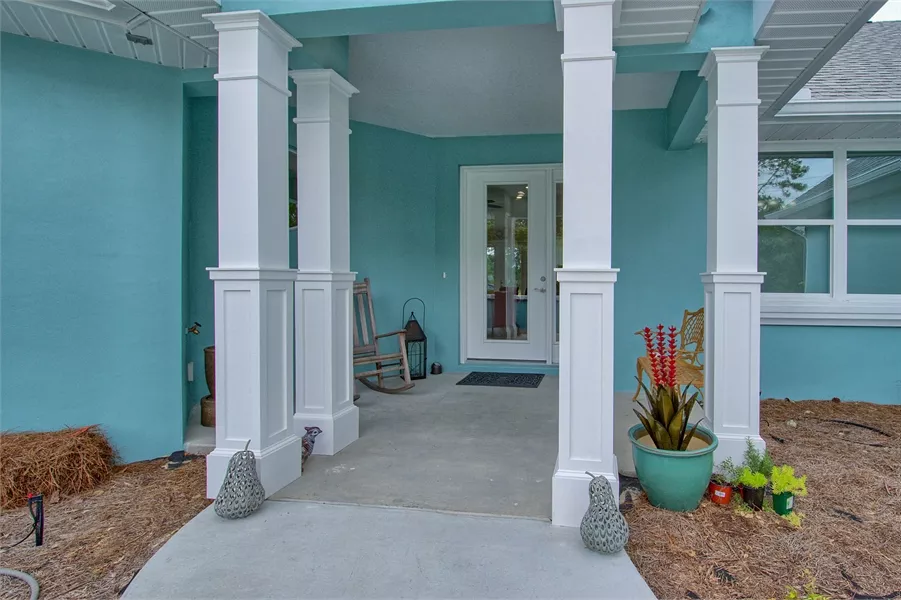

Covered Front Porch
Deck
Front Porch

Foundation Options

Basement
Crawlspace
Daylight Basement
Slab
Walkout Basement

Lot Options

Suited for corner lot
Suited for sloping lot
Suited for view lot

Additional features

Arches

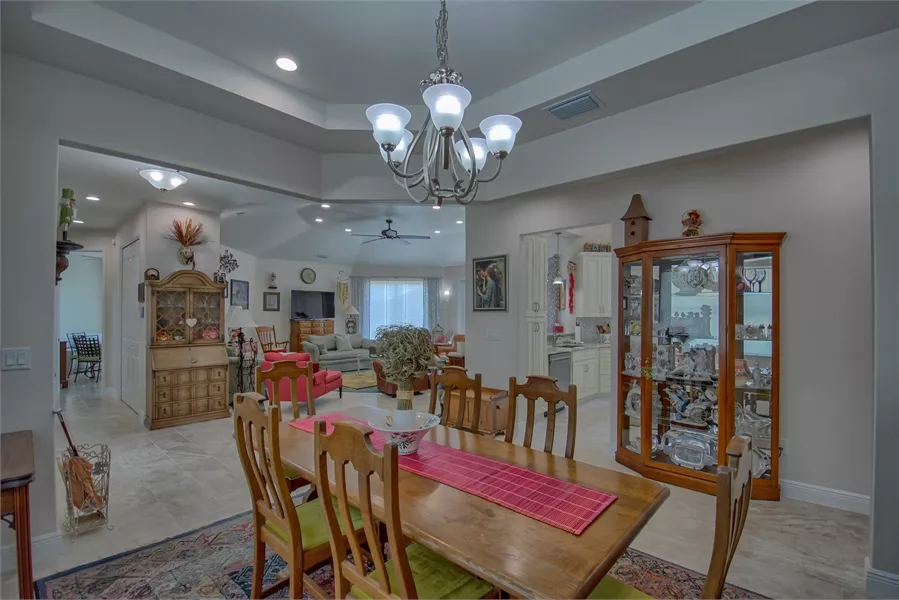

Dining Room
Fireplace

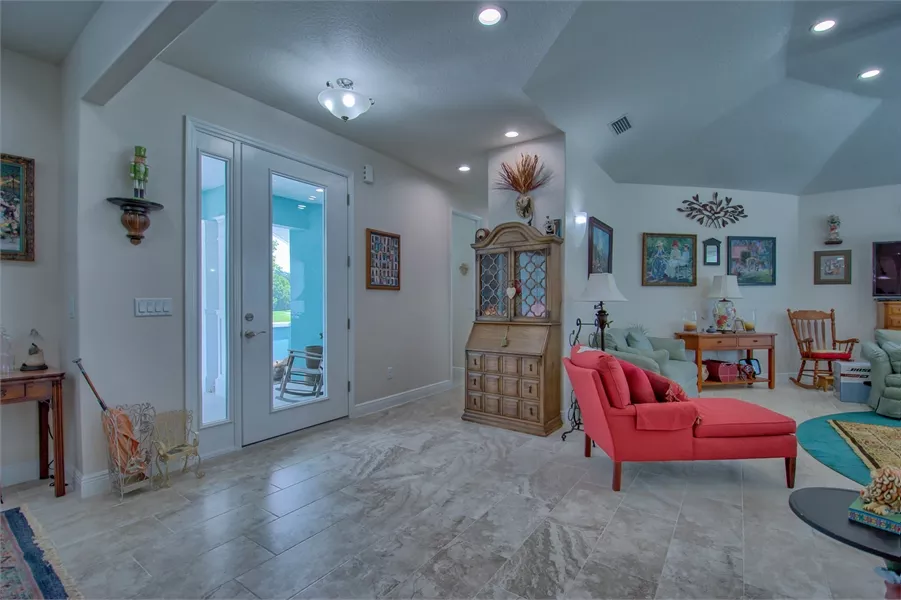

Foyer
Great Room
Laundry 1st Fl
Open Floor Plan
Vaulted Ceilings

Garage Options

Attached
Side-entry

2,262 Ft

Total Heated

2,262 Ft

1st Floor

1,535 Ft

Lower Floor

Bedrooms

2.5

Bathrooms

Garage

Stories

83' 7"

Width

54' 1"

Depth

28' 0"

Height

9' 0"

Main Floor Ceiling

2x4

Framing

Stick

Roof Framing

7/12

Primary Roof Pitch

12/12

Secondary Roof Pitch

Single

Dwelling Number

Unheated Living Space

702 Ft

Garage

67 Ft

Porch

440 Ft

Deck

Exterior Styles

Craftsman

Ranch

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$835

PDF Bid Set
PDFs NOW!™

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

$835

$1,125

PDF Single Build
PDFs NOW!™

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,125

$1,235

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,235

$1,310

8 Printed Sets

Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

$1,310

$2,095

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$2,095

Need To Reverse Plan? (Optional)

$350

Readable Reverse

Reverse house plans with readable text and dimensions

$350

Select Foundation Option

Add-Ons (Optional)

	Ground shipping within the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your house plan
	Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.

BEST PRICE GUARANTEE

find the same house plan (modifications included!) and package for less on another site, show us the URL and we'll give you the difference plus an additional 5% back.

100% SATISFACTION GUARANTEE

We offer a one-time, 14-day exchange policy for unused, non-electronic plan packages in the event you aren't satisfied with your first selection.

Customer Reviews of House Plan 5241

10/22/2019

Doris of Branford, FL

Customer Review:

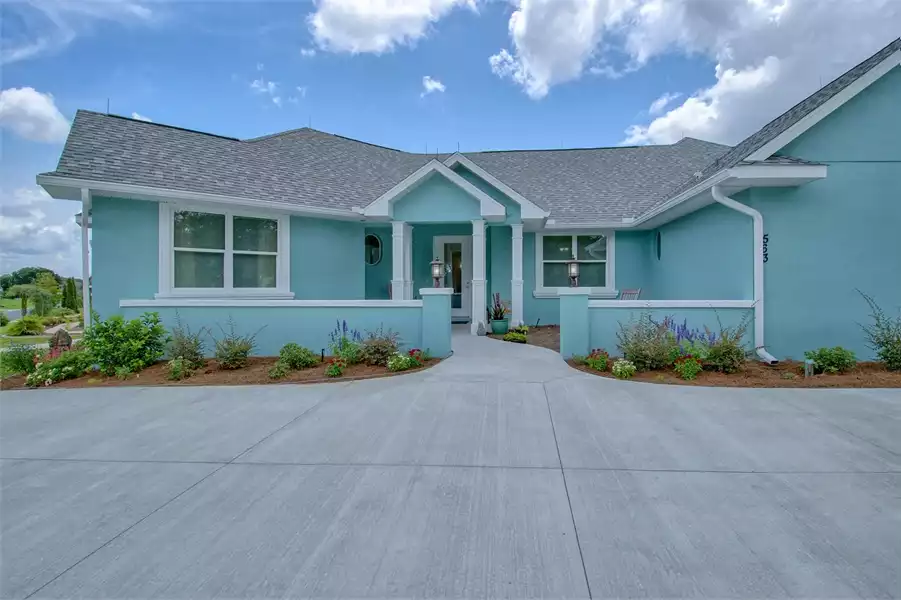

We are in the process of building this home. Right now the workers are putting on the roof in order to get the house dried in.

10/2/2017

Michael of Lady Lake, FL

Customer Review:

Very pleased with the plans we purchased. Received the entire set and promptly got them to our local architect for updating to FL building code. Also very pleased to have been selected by The House Designers to participate in the construction documentation experience. We hope to begin construction in late October or early November and are very excited to watch the plan become a home.

3/13/2014

Steve Mohr of GLIDDEN, IA

Customer Review:

Everything so far is going well, but construction isn't scheduled until fall.

SEE All Reviews
