Sq Ft
2,809 FT²
Bed
4
Bath
2.5
Stories
2
Garage
2
Depth
72'
Width
40' 4"
On Sale
$1,126.25
$1,325.00
© copyright by designer
View All 11 Images | Photographs may reflect modified home
Sq Ft
2,809 FT²
From
$1,126.25
Bed
4
Bath
2.5
Stories
2
Garage
2
Depth
72'
Width
40' 4"

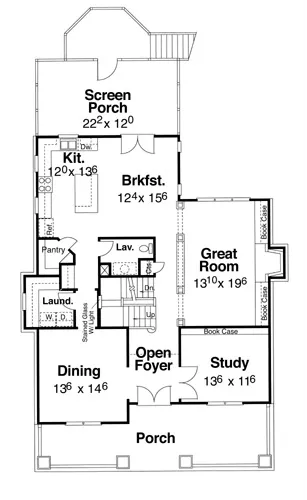

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

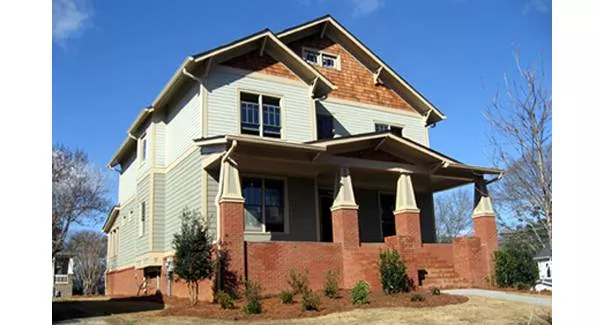

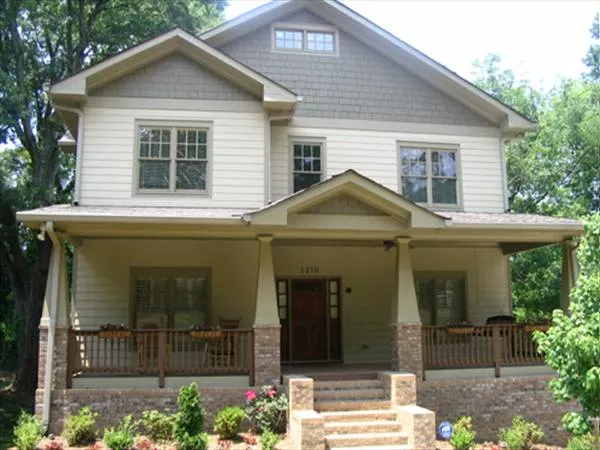

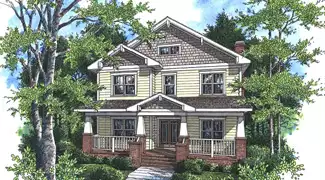

Front and rear porches make city living more enjoyable in this stylish craftsman designed cottage. This compact plan offers open spacious vistas from kitchen to great room, foyer to screen porch, helping the owner feel they are sacrificing nothing to live on a narrow lot.

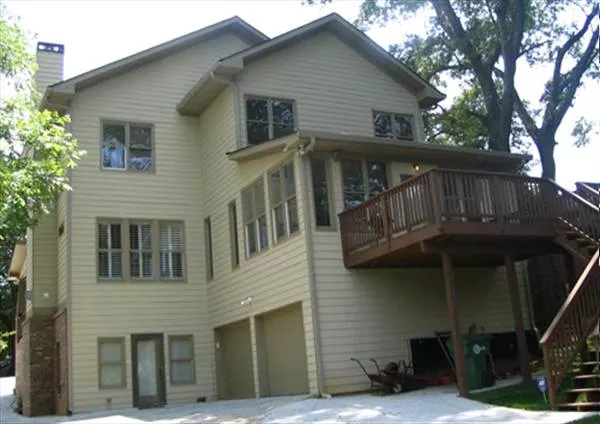

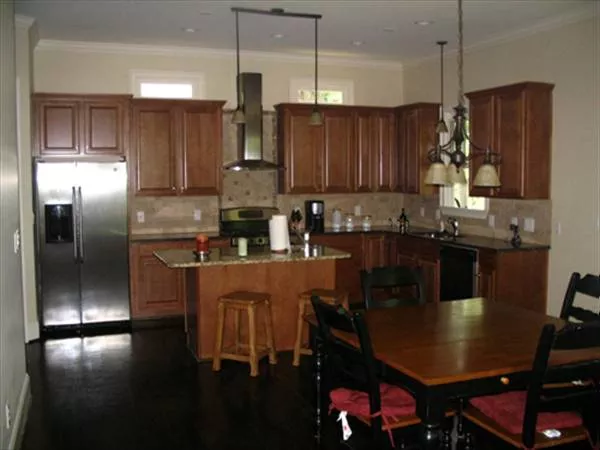

The rear garage, which can be oriented as a side or rear entry provides the additional main floor space for an expansive screen porch. The kitchen/breakfast area opens to it allowing the homeowner to enjoy the outdoors.

The second floor has room for a master and three spacious secondary rooms. The switch back staircase opens to a spacious landing with an overlook to the foyer.

An expansive modified cathedral ceiling adds to the grandeur of the master suite. A volume ceiling in the master bath provides elegance and increases the feeling of spaciousness with its shelf above the commode closet and shower.

The ground level allows for growth providing the perfect recreation room open to the motor court. The door on the stair landing allows this space to be finished at a later date or just closed off for privacy's sake.





FEATURES & DETAILS

Kitchen features
Butler's Pantry
Kitchen Island
Nook / Breakfast Area
Peninsula / Eating Bar
Walk-in Pantry
Bedroom features
Double Vanity Sink
Walk-in Closet
Exterior features
Covered Front Porch
Covered Rear Porch
Deck
Front Porch
Rear Porch
Screened Porch/Sunroom
Foundation Options
Basement
Walkout Basement
Lot Options
Suited for narrow lot
Suited for sloping lot
Additional features
Family Room
Fireplace
Formal LR
Foyer
Home Office
Library/Media Rm
Open Floor Plan
Rec Room
Unfinished Space
Vaulted Ceilings
Garage Location
Under
Garage Options
Attached
Drive-under
Side-entry
2,809 Ft
2
Total Heated
1,434 Ft
2
1st Floor
1,375 Ft
2
2nd Floor
1,434 Ft
2
Lower Floor
4
Bedrooms
2.5
Bathrooms
2
Garage
2
Stories
40' 4"
Width
72' 0"
Depth
28' 8"
Height
10' 0"
Main Floor Ceiling
9' 0"
Upper Floor Ceiling
2x4
Framing
Stick
Roof Framing
7/12
Primary Roof Pitch
3/12
Porch Roof Pitch
Single
Dwelling Number

Unheated Living Space
484 Ft
2
Garage
552 Ft
2
Porch
90 Ft
2
Deck


Plan Package Options

 Select Plan Package
$850
PDF Bid Set
PDFs NOW!™

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

$850
$1,325
PDF Single Build
PDFs NOW!™

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,325
$1,450
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,450
  Select Foundation Option
  Add-Ons (Optional)

Ground shipping within the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your house plan

Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.

BEST PRICE GUARANTEE

find the same house plan (modifications included!) and package for less on another site, show us the URL and we'll give you the difference plus an additional 5% back.

100% SATISFACTION GUARANTEE

We offer a one-time, 14-day exchange policy for unused, non-electronic plan packages in the event you aren't satisfied with your first selection.

Customer Reviews of House Plan 5822
