Sq Ft
985 FT²

Bed
2

Bath
2

Stories
2

Garage
1

Depth
41' 6"

Width
59' 11"

On Sale
$760.75
$895.00

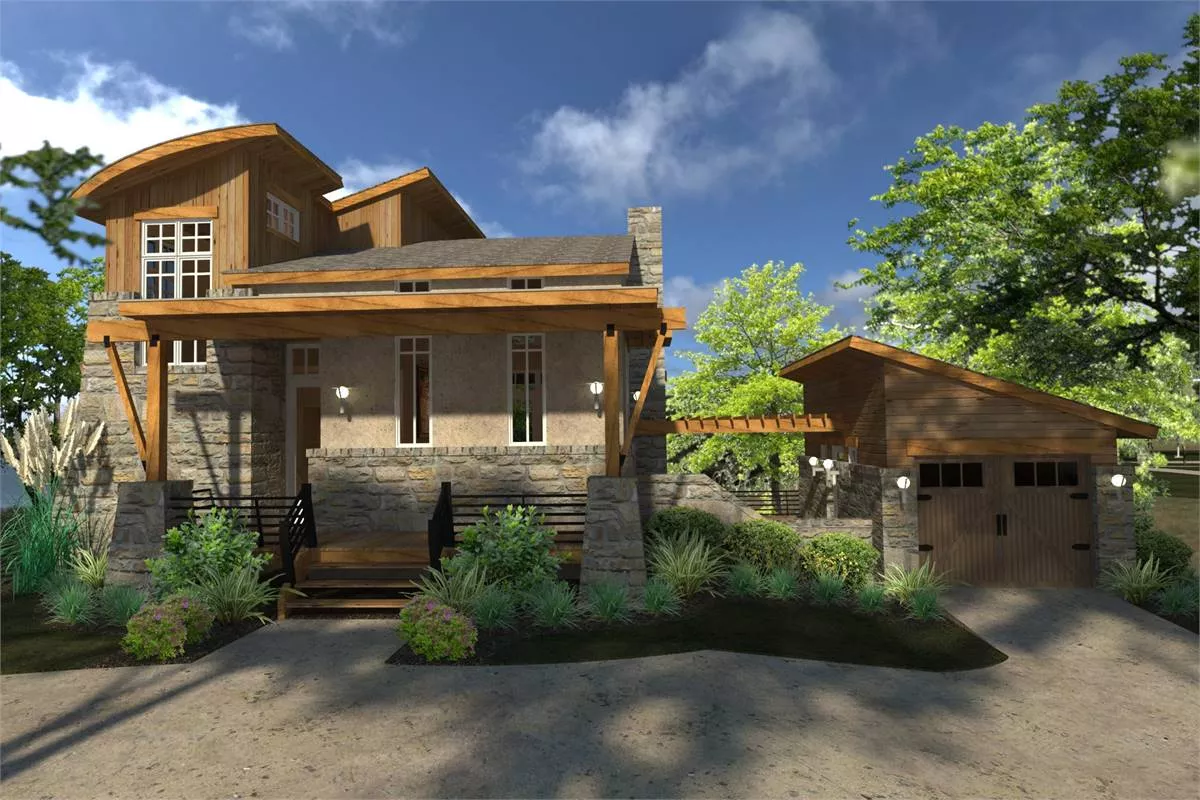

Gorgeous Front Rendering with Modern Accents

Impressive Right Front Rendering with Garage View

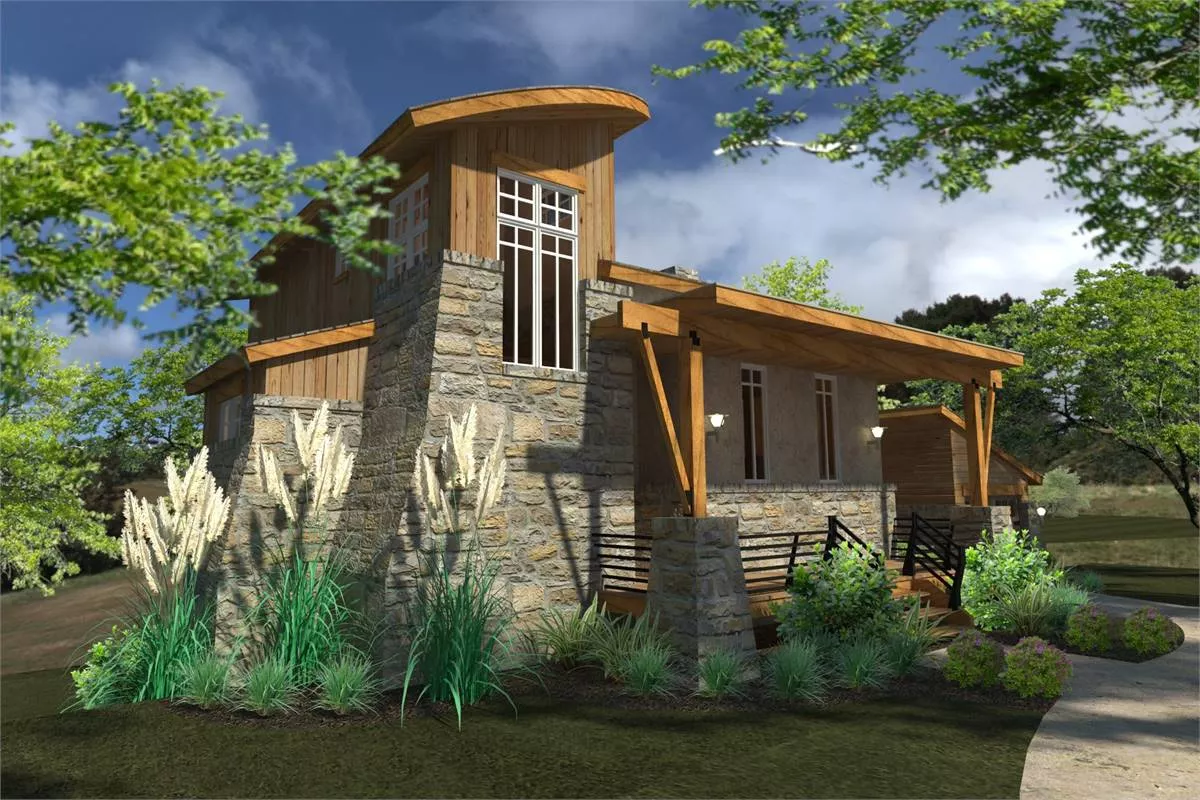

Stunning Front Left Rendering with Stacked Stone Accents

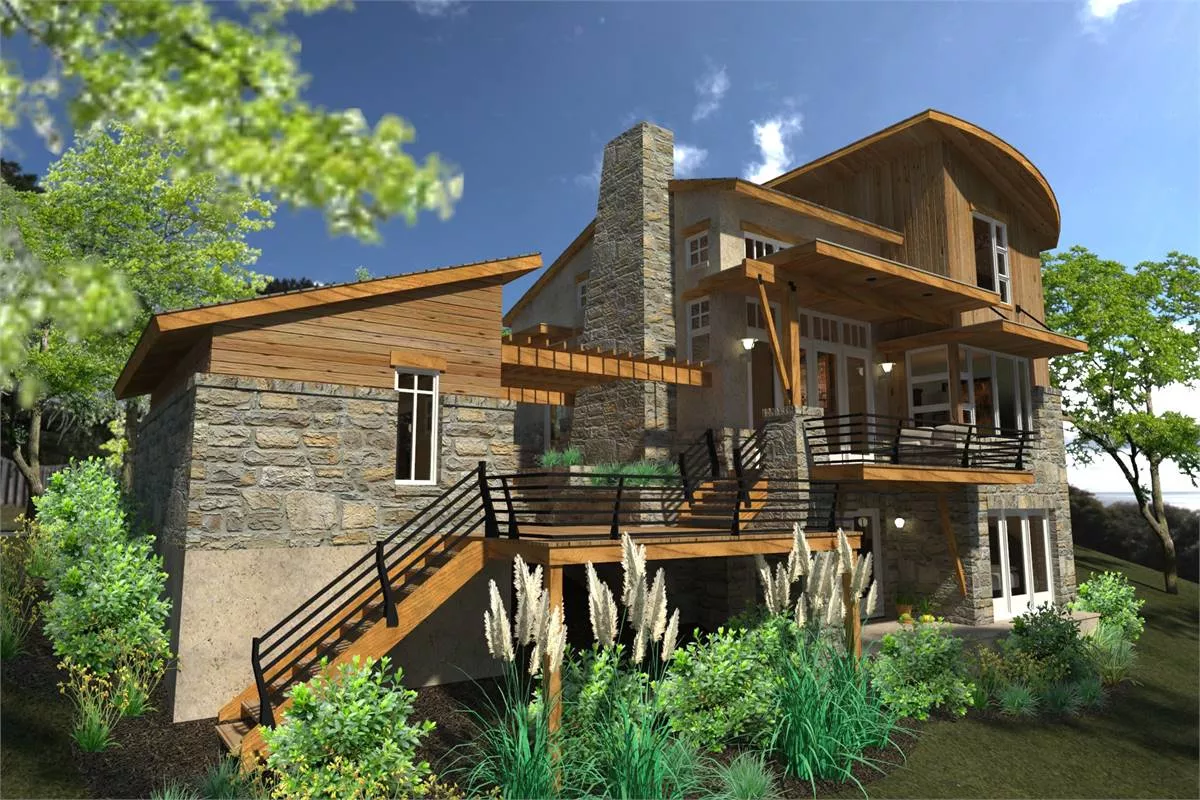

Stunning Left Rear Rendering Featuring Multiple Windows

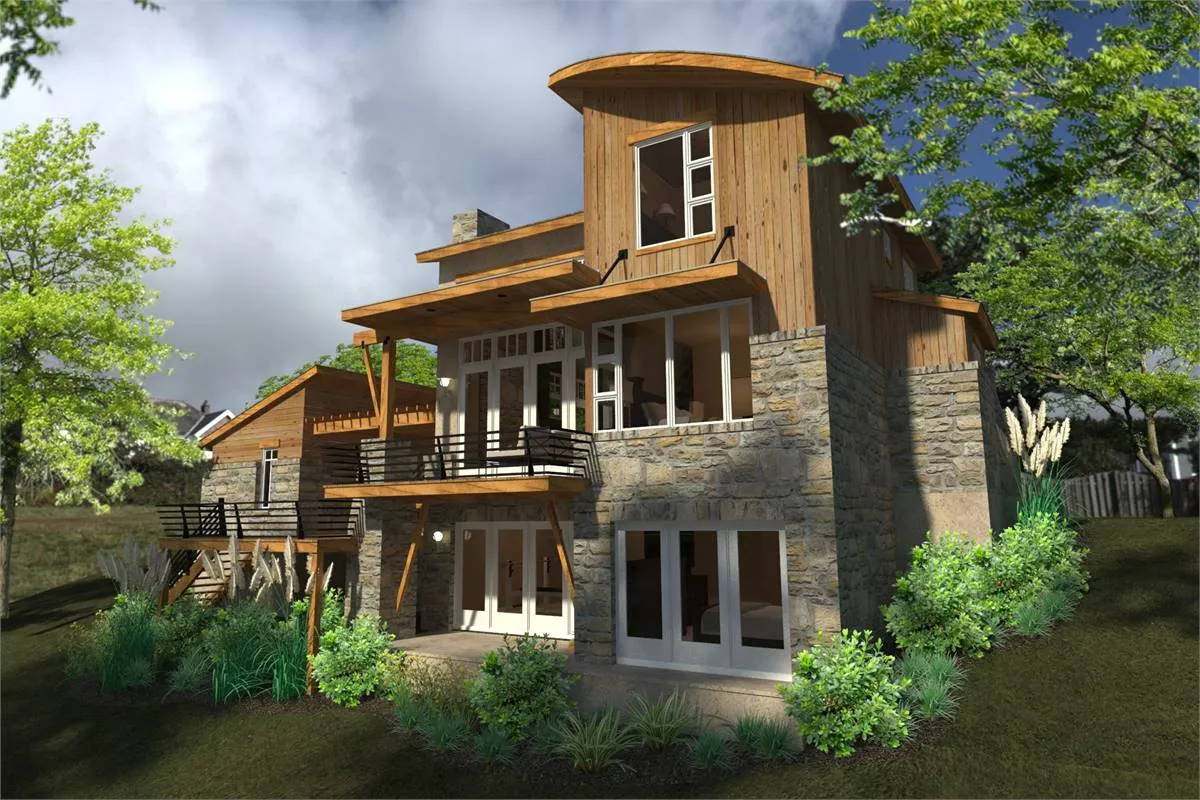

Impressive Right Rear Rendering Featuring Open Staircase

View All 5 Images | Photographs may reflect modified home | 360° View

Sq Ft

985 FT²

From

$760.75

Bed

Bath

Stories

Garage

Depth

41' 6"

Width

59' 11"

Modify

Cost Estimator

Sample Plan

Architect's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

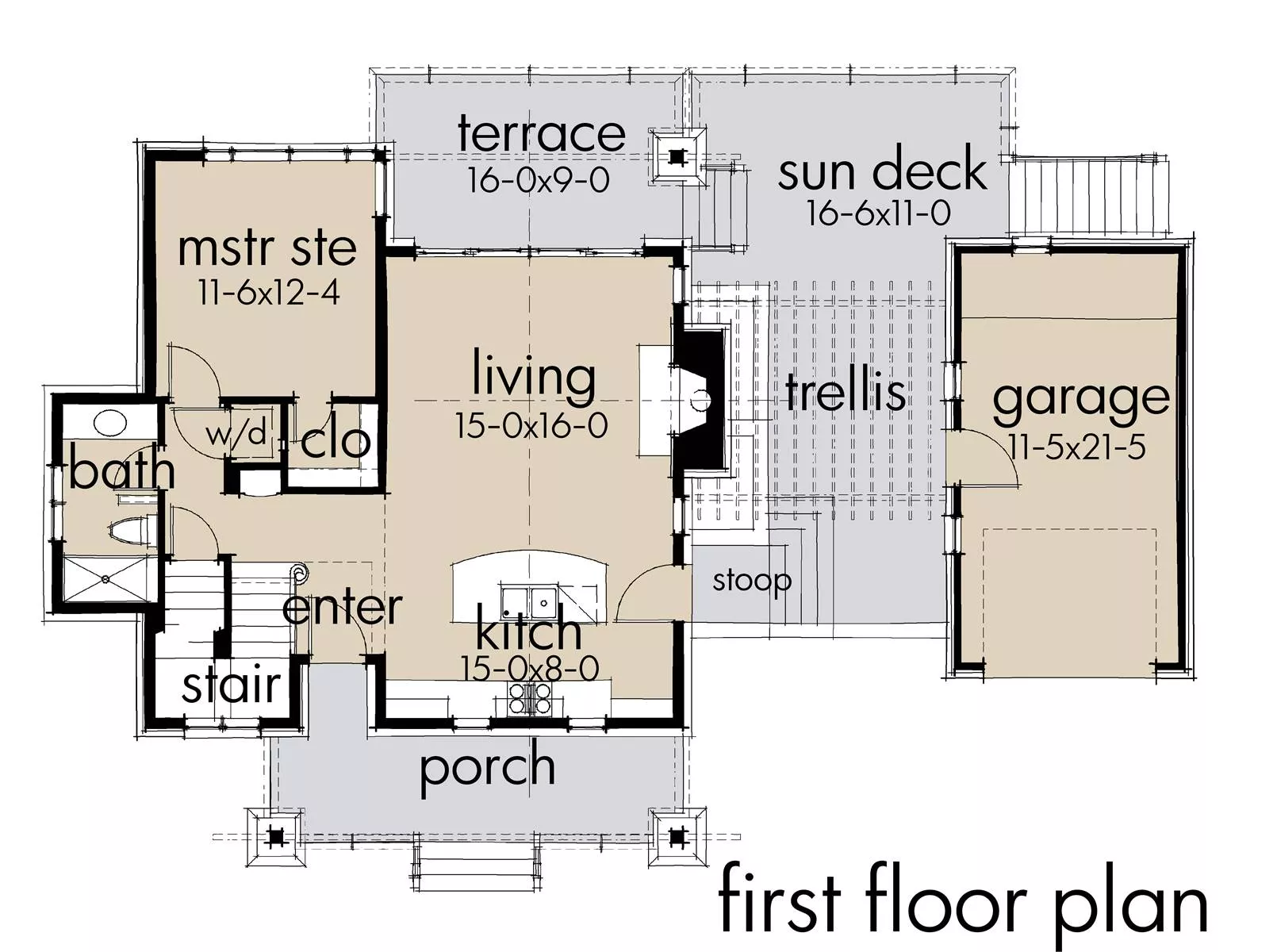

First Floor Plan

Basement Plan

Second Floor Plan

First Floor Plan

Basement Plan

Second Floor Plan

About This Plan

Minimalism with style, this cabin will function as a second home getaway very well on the beach, lake or in the mountains.

An expansive informal living area makes view a priority. The master is compact but livable and has magnificent views as well as a walk in closet.

The downstairs bath provides a shower, w/c and a stackable w/d is accessible from the hallway.

The transition to the detached garage via split level deck provides flexibility for numerous siting and topographical situations.

A second bedroom is provided on the second level with a full bath and walk in closet.

An optional lower level is designed to include a thrid bedroom and large game room with views/access at grade level.

FEATURES & DETAILS

Kitchen features

Kitchen Island
Peninsula / Eating Bar

Bedroom features

Primary Bdrm Main Floor

Exterior features

Covered Front Porch
Covered Rear Porch
Deck
Front Porch
Rear Porch

Foundation Options

Basement
Crawlspace
Slab
Walkout Basement

Lot Options

Suited for sloping lot
Suited for view lot

Additional features

Fireplace
Open Floor Plan
Unfinished Space

Garage Location

Front

Garage Options

Detached
Front-entry

1,523 Ft

Total Structure

985 Ft

Total Heated

740 Ft

1st Floor

245 Ft

2nd Floor

742 Ft

Lower Floor

742 Ft

Optional Lower level

Bedrooms

Bathrooms

Garage

Stories

59' 11"

Width

41' 6"

Depth

23' 0"

Height

9' 0"

Main Floor Ceiling

9' 0"

Upper Floor Ceiling

2x4

Framing

Stick

Roof Framing

4/12

Primary Roof Pitch

flat

Porch Roof Pitch

Single

Dwelling Number

None

Bonus Access

Unheated Living Space

264 Ft

Garage

274 Ft

Porch

352 Ft

Deck

Exterior Styles

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$895

PDF Single Build
PDFs NOW!™

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$895

$1,045

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,045

$1,145

5 Printed Sets + PDF
PDFs NOW!™

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

$1,145

$1,695

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$1,695

$2,090

CAD Unlimited Build

2D electronic computer files, completely editable, for design professional use when making extensive modifications; multi-license allows unlimited builds

$2,090

Need To Reverse Plan? (Optional)

$195

Readable Reverse

Reverse house plans with readable text and dimensions

$195

Select Foundation Option

Add-Ons (Optional)

	Ground shipping within the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your house plan
	Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.

BEST PRICE GUARANTEE

find the same house plan (modifications included!) and package for less on another site, show us the URL and we'll give you the difference plus an additional 5% back.

100% SATISFACTION GUARANTEE

We offer a one-time, 14-day exchange policy for unused, non-electronic plan packages in the event you aren't satisfied with your first selection.
