Sq Ft
741 FT²

Bed
1

Bath
1

Stories
2

Garage
0

Depth
52'

Width
44'

On Sale
$505.75
$595.00

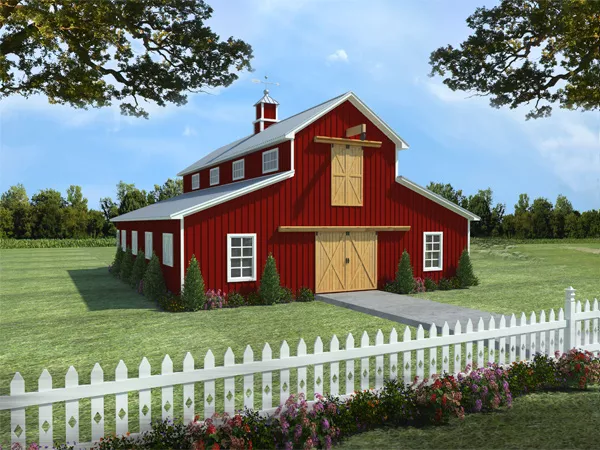

Front

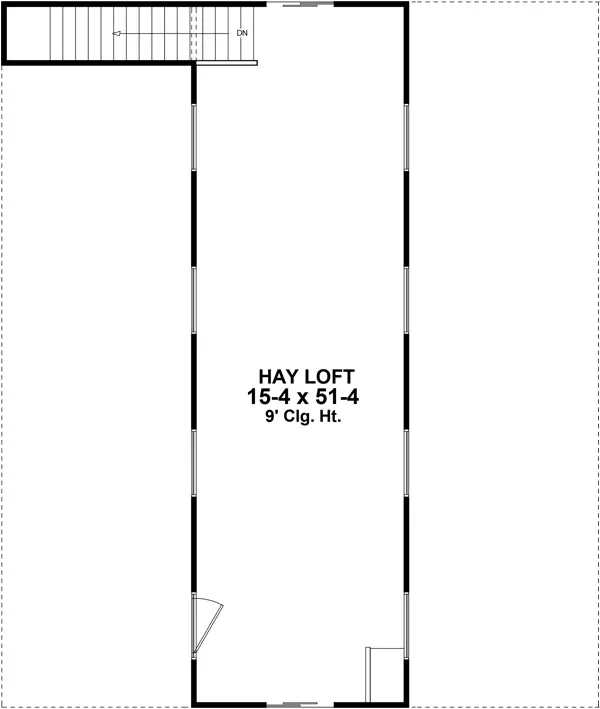

Floor Plan 2

Front Elevation - Additional

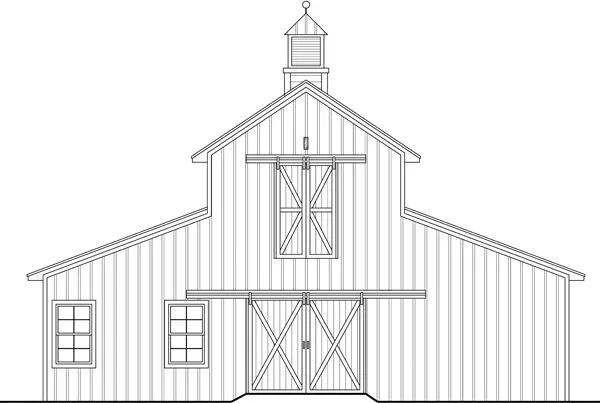

Rear

View All 4 Images | Photographs may reflect modified home

Sq Ft

741 FT²

From

$505.75

Bed

Bath

Stories

Garage

Depth

52'

Width

44'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

Floorplan

About This Plan

This full featured apartment barn design includes a drive through tractor storage, hay storage, tack/feed room, 2 stalls, a live in apartment, and hay loft above. First Floor: 2,289 sf (741 sf heated in 1st floor apartment & 1,548 sf un-heated). Second Floor: 810 sf un-heated.

FEATURES & DETAILS

Bedroom features

Primary Bdrm Main Floor

Foundation Options

Slab

Lot Options

Suited for corner lot
Suited for narrow lot
Suited for sloping lot
Suited for view lot

Additional features

Open Floor Plan
Storage Space
Workshop

Garage Location

Front

Garage Options

Front-entry
With Living Space

3,094 Ft

Total Structure

741 Ft

Total Heated

1,543 Ft

1st Floor

810 Ft

2nd Floor

1,543 Ft

1st Floor (Unheated)

810 Ft

2nd Floor Unheated

Bedrooms

Bathrooms

Garage

Stories

44' 0"

Width

52' 0"

Depth

26' 3"

Height

10' 0"

Main Floor Ceiling

9' 0"

Upper Floor Ceiling

2x4

Framing

Stick

Roof Framing

4.5 in 12

Primary Roof Pitch

8 in 12

Secondary Roof Pitch

Garage

Dwelling Number

None

Bonus Access

Unheated Living Space

Exterior Styles

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$595

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$595

$710

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$710

$820

5 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

$820

$1,100

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$1,100

Need To Reverse Plan? (Optional)

$100

Readable Reverse

Reverse house plans with readable text and dimensions

$100

Select Foundation Option

Add-Ons (Optional)

	Ground shipping within the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your house plan
	Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
