Sq Ft
2,897 FT²

Bed
5

Bath
4.5

Stories
3

Garage
1

Depth
57' 8"

Width
40'

On Sale
$1,062.50
$1,250.00

Beautiful Front View Featuring Columned Front Porch

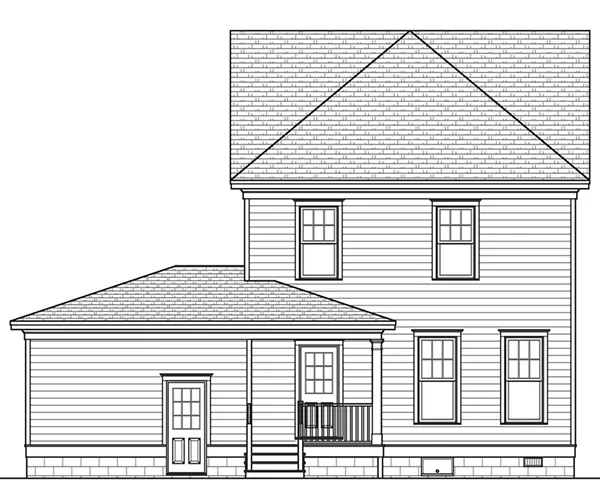

Rear Elevation

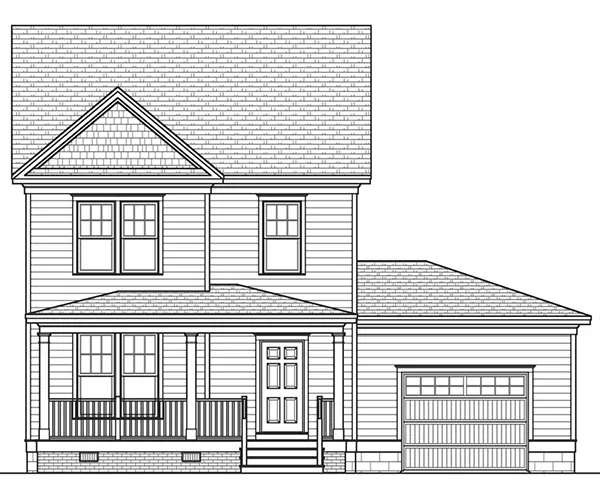

Front Elevation

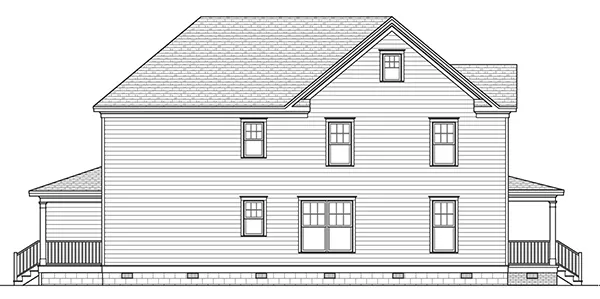

Left Side Elevation

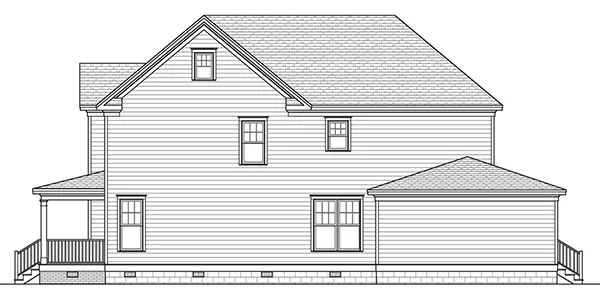

Right Side Elevation

View All 5 Images | Photographs may reflect modified home

Sq Ft

2,897 FT²

From

$1,062.50

Bed

Bath

4.5

Stories

Garage

Depth

57' 8"

Width

40'

Modify

Cost Estimator

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

1st Floor

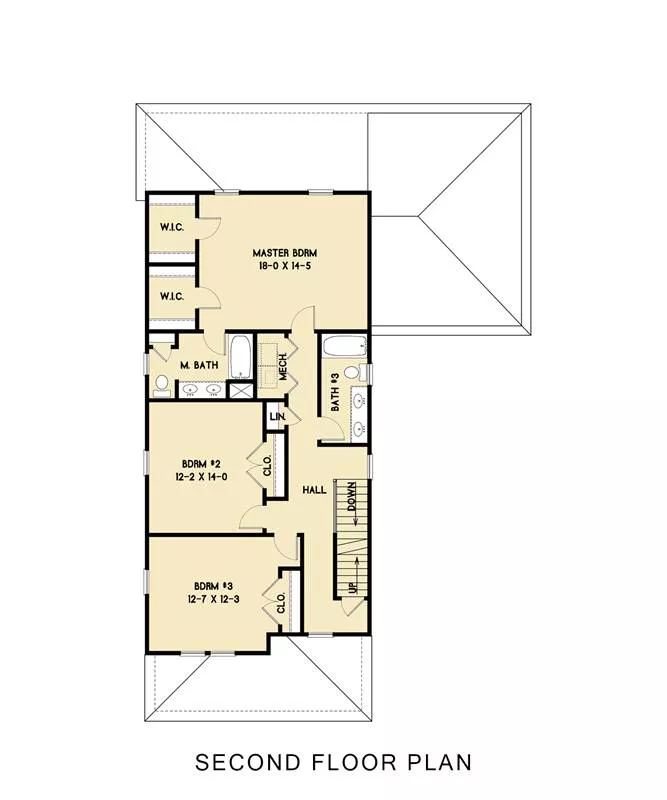

2nd Floor

3rd Floor

1st Floor

2nd Floor

3rd Floor

About This Plan

This Victorian style house plan model provides a one-car garage with a driveway from the street. Inside the garage there is a handicapped ramp for easy wheelchair entry to the covered rear porch. A handicapped equipped Bedroom Suite on the first floor is immediately adjacent to the rear porch entry. The Victorian exterior style of this house plan provides a bonus of attic space that is potentially available for finishing into fifth bedroom with a bath. The main house structure is just 24-0 feet wide, not including the 16-0 wide garage.

FEATURES & DETAILS

Kitchen features

L-Shaped
Nook / Breakfast Area
Pantry

Bedroom features

Double Vanity Sink
Guest Suite
His and Hers Primary Closets
Primary Bdrm Upstairs
Separate Tub and Shower
Walk-in Closet

Exterior features

Covered Front Porch
Covered Rear Porch
Front Porch
Rear Porch

Foundation Options

Crawlspace

Lot Options

Suited for corner lot
Suited for sloping lot

Additional features

Bonus Room
Dining Room
Family Room
In-law Suite
Laundry 1st Fl

Garage Location

Side

Garage Options

Attached
Front-entry

3,052 Ft

Total Structure

2,897 Ft

Total Heated

1,250 Ft

1st Floor

1,119 Ft

2nd Floor

528 Ft

3rd Floor

Bedrooms

4.5

Bathrooms

Garage

Stories

40' 0"

Width

57' 8"

Depth

32' 8"

Height

9' 0"

Main Floor Ceiling

8' 0"

Upper Floor Ceiling

2x4

Framing

Stick

Roof Framing

10/12

Primary Roof Pitch

4/12

Secondary Roof Pitch

3/12

Porch Roof Pitch

Single

Dwelling Number

2nd Floor

Bonus Access

Unheated Living Space

365 Ft

Garage

155 Ft

Porch

72 Ft

Deck

Exterior Styles

Southern

Traditional

Victorian

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$300

PDF Bid Set

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

$300

$1,250

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,250

$1,350

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,350

$1,950

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$1,950

Select Foundation Option

Add-Ons (Optional)

	Ground shipping within the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your house plan
	Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
