Sq Ft
3,147 FT²

Bed
4

Bath
3.5

Stories
1

Garage
3

Depth
96'

Width
80' 4"

On Sale
$1,105.00
$1,300.00

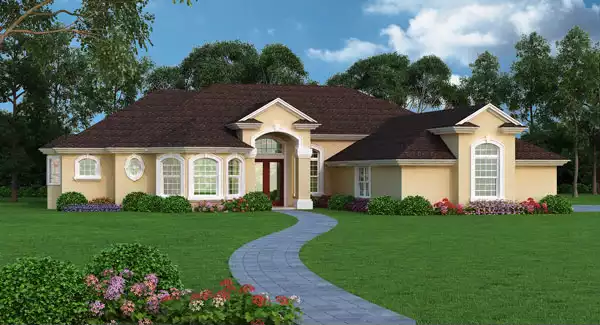

Front Rendering (Color)

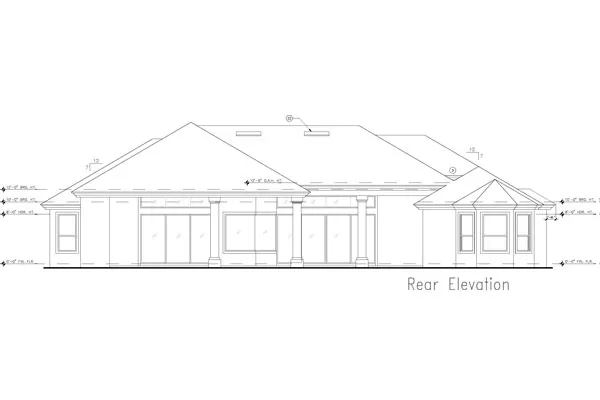

Rear Elevation

View All 2 Images | Photographs may reflect modified home

Sq Ft

3,147 FT²

From

$1,105.00

Bed

Bath

3.5

Stories

Garage

Depth

96'

Width

80' 4"

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

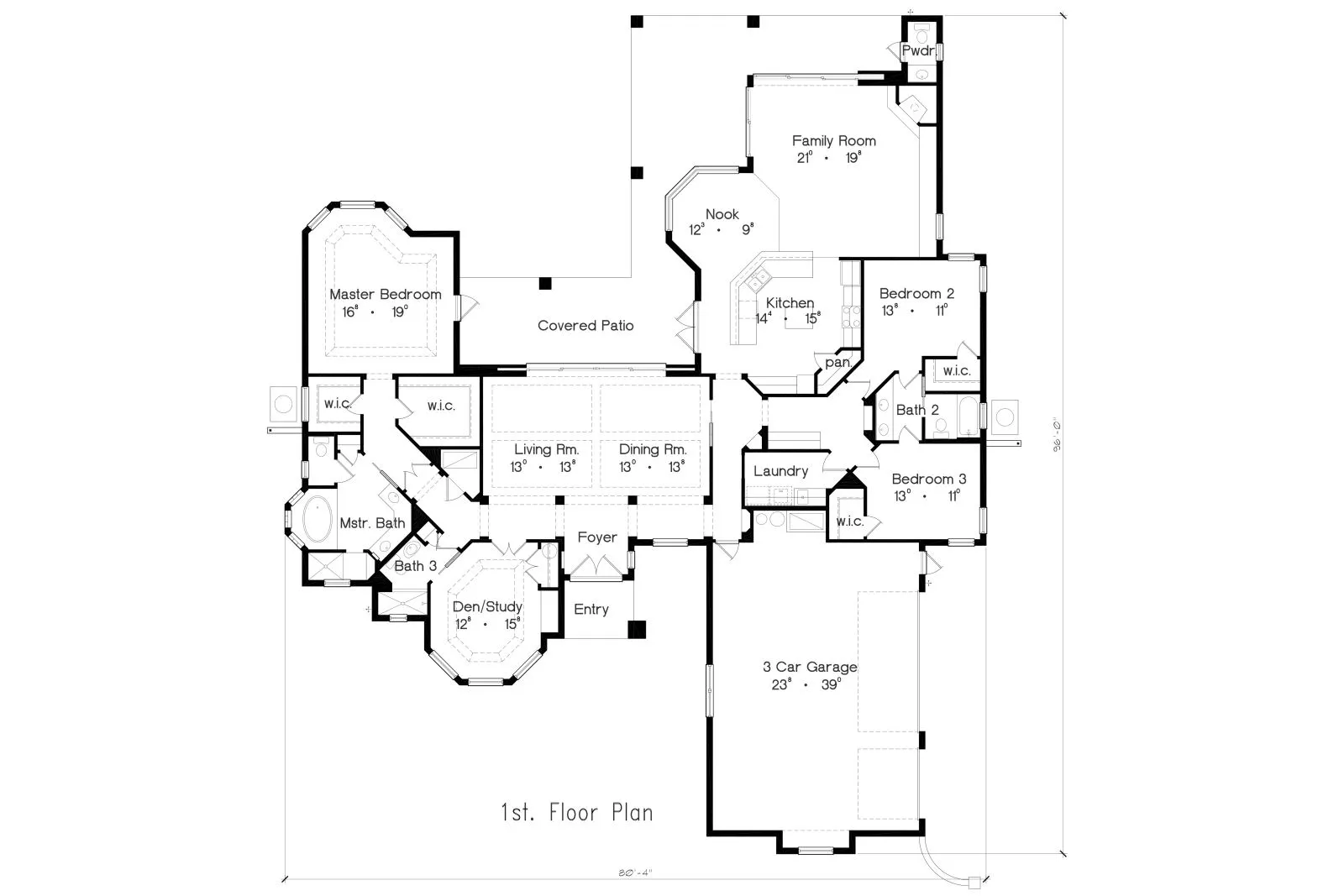

Floor Plan

About This Plan

From the foyer, this one-story home design seems to unfold before guests. The living and dining rooms form a rectangle with beautiful coffered ceilings and a view straight through to the back covered patio, perfect for those lake views. The den/study could serve as an extra bedroom. Enjoy your master suite with bayed bedroom, his and hers walk-in closets, and master bath with large garden tub and two sinks. The other side of the home is the "family" area, which contains a large kitchen, breakfast nook, family room, laundry room, and two good-sized bedrooms with Jack and Jill bath. The three-car garage is perfect for your growing family. Both the family room and the living room have sliders that will bring the outside in on those balmy, summer days. Enjoy this beautiful 3000+ sq. ft. home, which feels like an island oasis. You'll want to spend all of your free time at home.

FEATURES & DETAILS

Kitchen features

Kitchen Island
Nook / Breakfast Area
Peninsula / Eating Bar
Walk-in Pantry

Bedroom features

Double Vanity Sink
Guest Suite
His and Hers Primary Closets
Primary Bdrm Main Floor
Separate Tub and Shower
Sitting Area
Split Bedrooms
Walk-in Closet

Exterior features

Courtyard
Covered Rear Porch
Front Porch

Foundation Options

Basement
Crawlspace
Slab

Lot Options

Suited for view lot

Additional features

2 Story Volume
Arches
Dining Room
Family Room
Fireplace
Formal LR
Foyer
Home Office
Laundry 1st Fl
Open Floor Plan
Vaulted Ceilings
Workshop

Garage Location

Side

Garage Options

Attached
Oversized
Side-entry

4,827 Ft

Total Structure

3,147 Ft

Total Heated

Bedrooms

3.5

Bathrooms

Garage

Stories

80' 4"

Width

96' 0"

Depth

24' 0"

Height

Varies' 0"

Main Floor Ceiling

8" Block

Framing

Combination

Roof Framing

7/12

Primary Roof Pitch

7:12

Secondary Roof Pitch

Single

Dwelling Number

None

Bonus Access

Unheated Living Space

890 Ft

Garage

56 Ft

Porch

734 Ft

Patio

Exterior Styles

European

Mediterranean

Tuscan

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$700

PDF Bid Set
PDFs NOW!™

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

$700

$1,300

PDF Single Build
PDFs NOW!™

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,300

$1,500

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,500

$1,650

5 Printed Sets + PDF
PDFs NOW!™

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

$1,650

$2,600

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$2,600

Select Foundation Option

Add-Ons (Optional)

	Ground shipping within the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your house plan
	Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
