Sq Ft
2,845 FT²

Bed
4

Bath
3

Stories
2

Garage
3

Depth
46'

Width
80'

On Sale
$913.75
$1,075.00

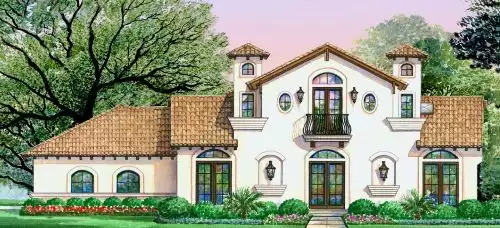

Color Rendering

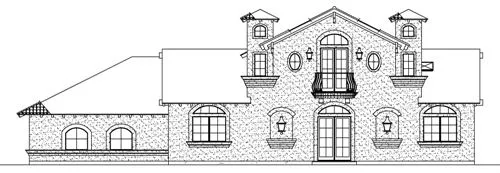

Front Elevation

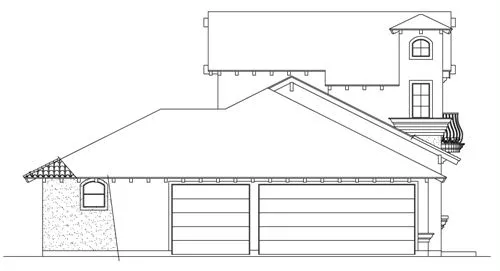

Left Elevation

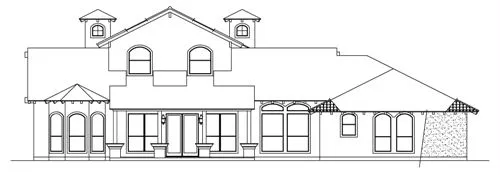

Rear Elevation

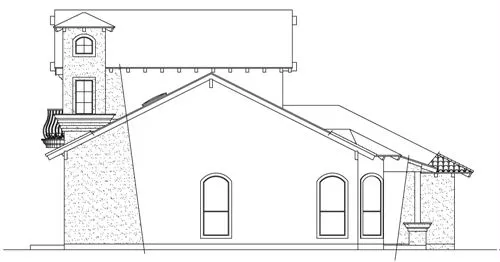

Right Elevation

View All 5 Images | Photographs may reflect modified home

Sq Ft

2,845 FT²

From

$913.75

Bed

Bath

Stories

Garage

Depth

46'

Width

80'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

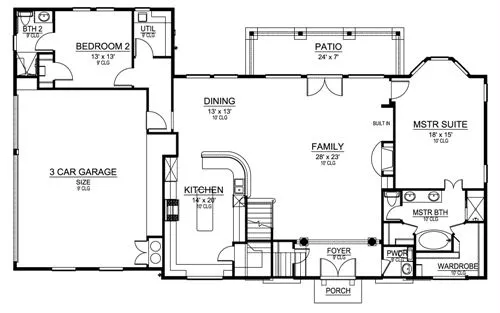

First Floor

Second Floor

First Floor

Second Floor

About This Plan

This luxury villa offers living at its best in a four-bedroom plan. Enter through the double doors of the foyer, directly into the family room with warming fireplace and patio access to a possible pool and fountain. The family gathering area consists of the kitchen, dining area and family room. The gourmet kitchen provides a handy breakfast bar. The bayed master bedroom leads to a deluxe private bath. A family bedroom with walk-in closet and full bath sits quietly behind the three-car garage. Upstairs are two more bedrooms and a shared full bath, completing this luxury villa.

FEATURES & DETAILS

Kitchen features

Country Kitchen
Kitchen Island

Bedroom features

Primary Bdrm Main Floor
Separate Tub and Shower

Exterior features

Covered Front Porch
Covered Rear Porch
Front Porch
Rear Porch

Foundation Options

Slab

Additional features

Arches
Dining Room
Family Room
Fireplace
Foyer
Laundry 1st Fl
Open Floor Plan

Garage Location

Side

Garage Options

Attached
Side-entry

3,317 Ft

Total Structure

2,845 Ft

Total Heated

2,289 Ft

1st Floor

556 Ft

2nd Floor

Bedrooms

Bathrooms

Garage

Stories

80' 0"

Width

46' 0"

Depth

29' 0"

Height

11' 0"

Main Floor Ceiling

9' 0"

Upper Floor Ceiling

2x6

Framing

Stick

Roof Framing

Primary Roof Pitch

Secondary Roof Pitch

Single

Dwelling Number

Unheated Living Space

764 Ft

Garage

50 Ft

Porch

Exterior Styles

Mediterranean

Traditional

Tuscan

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$970

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$970

$1,150

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,150

$1,460

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$1,460

Need To Reverse Plan? (Optional)

$120

Readable Reverse

Reverse house plans with readable text and dimensions

$120

Select Foundation Option

Add-Ons (Optional)

	Ground shipping within the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your house plan
	Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
