Sq Ft
7,354 FT²
Bed
5
Bath
5.5
Stories
1
Garage
3
Depth
100'
Width
113'
On Sale
$2,800.75
$3,295.00
© copyright by designer
View All 27 Images | Photographs may reflect modified home
Sq Ft
7,354 FT²
From
$2,800.75
Bed
5
Bath
5.5
Stories
1
Garage
3
Depth
100'
Width
113'

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

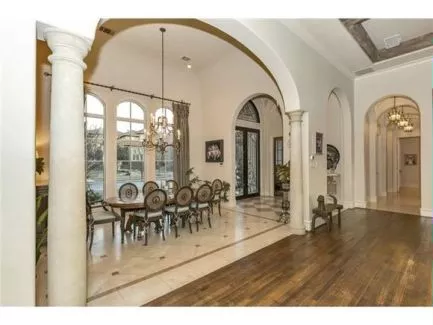

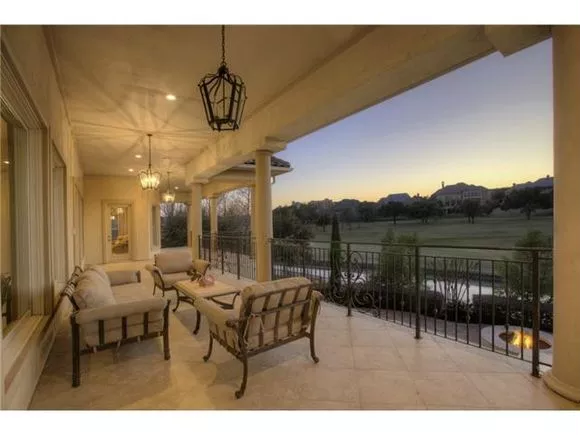

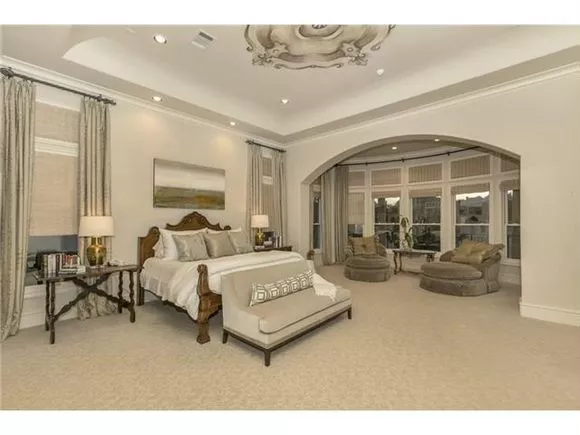

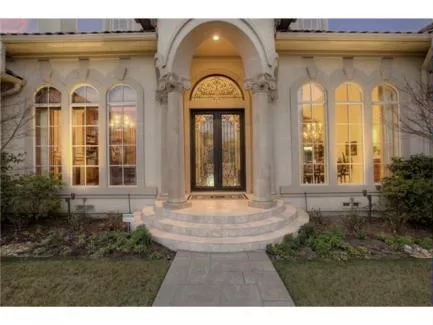

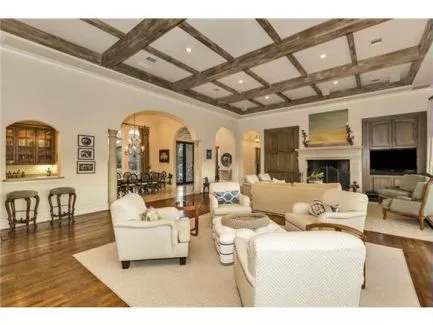

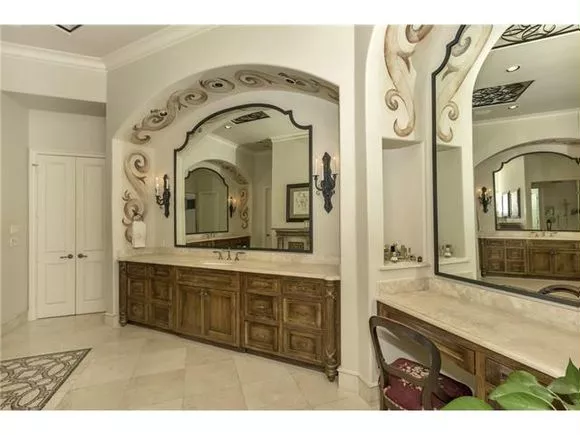

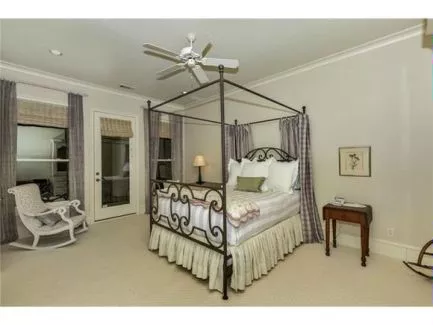

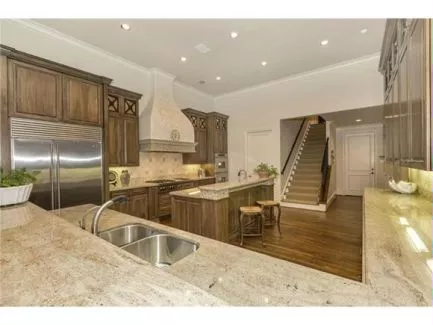

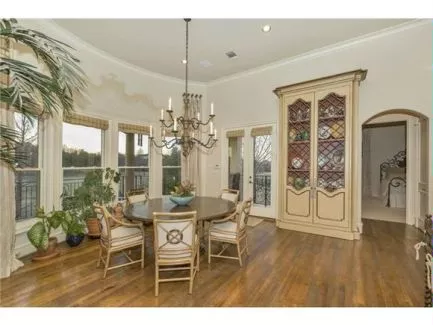

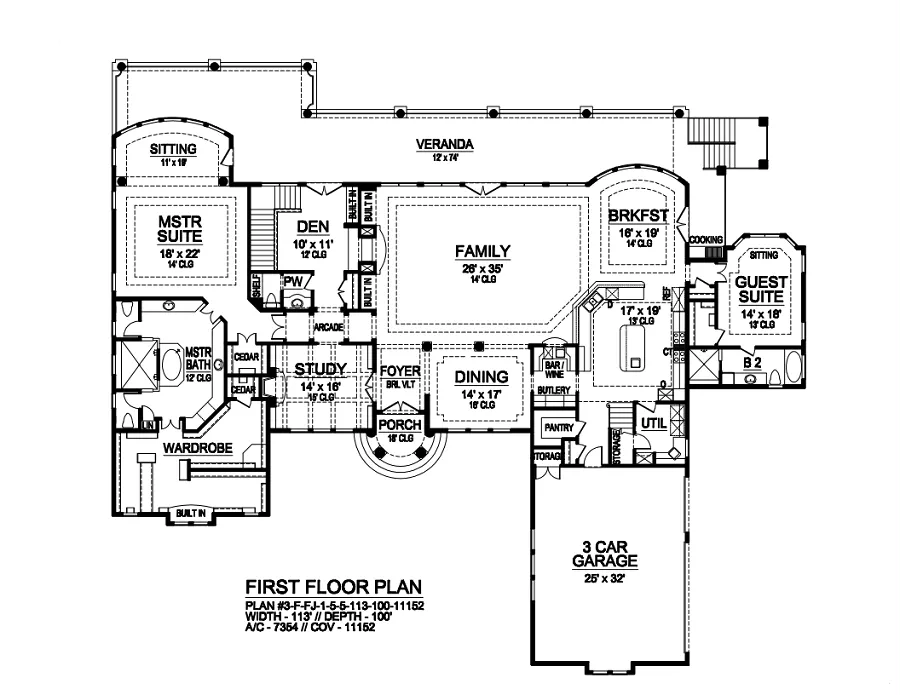

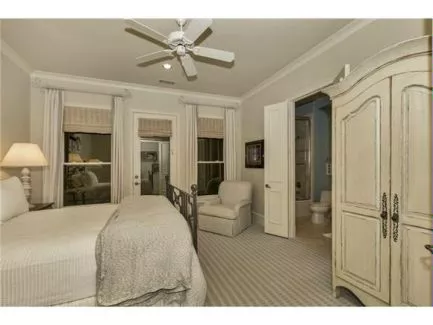

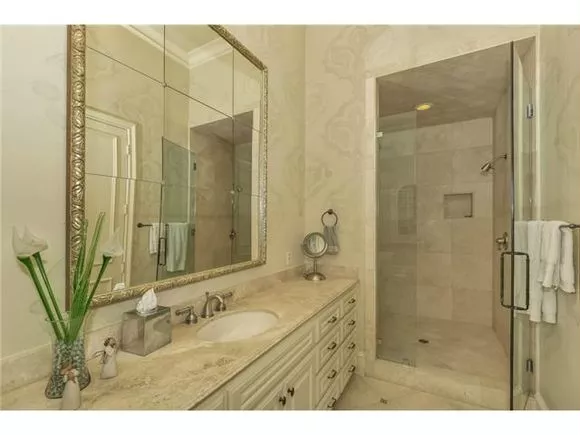

This extravagant Tuscan luxury mansion will bring your search for the perfect house plan to an end. The two-story barrel vaulted foyer is greeted by the quiet study with coffered ceiling and warming fireplace and the formal dining room with access to the wine bar, butlery and kitchen for ease in serving. The family gathering area consists of the kitchen, breakfast area and family room. The family room's two-way fireplace with the den is flanked with built-ins. The large bank of windows allows the sun to stream through to brighten your days. The gourmet kitchen offers a generous island for extra counter space and a breakfast bar that can be shared with the family room and breakfast area. A guest suite with bayed window sitting area, walk-in closet and full bath sits quietly at the back of this luxury house plan. The luxurious master suite boasts a bayed window sitting area, trey ceiling, lavish master bath with his and hers vanities, separate shower, whirlpool, and a large wardrobe with built-in cedar closets. A den with many built-ins and veranda access sits between the family room and master suite. The three-car garage with courtyard entry completes this level of this luxury mansion. The terrace level below offers a game room, three family bedrooms with walk-in closets and full baths, storage and access to the outdoor lounge and terrace, completing this Tuscan luxury mansion house plan.


FEATURES & DETAILS

Kitchen features
Butler's Pantry
Kitchen Island
Nook / Breakfast Area
Bedroom features
Guest Suite
Primary Bdrm Main Floor
Sitting Area
Split Bedrooms
Walk-in Closet
Exterior features
Front Porch
Rear Porch
Foundation Options
Crawlspace
Slab
Walkout Basement
Additional features
Dining Room
Family Room
Foyer
Home Office
Laundry 1st Fl

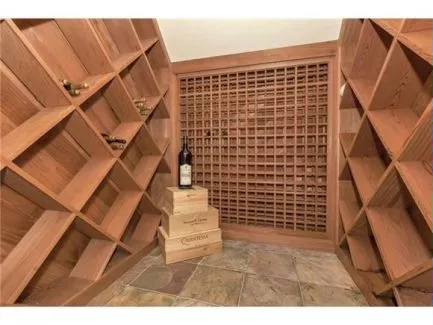

Wine Cellar
Garage Location
Front
Garage Options
Attached
Side-entry
11,152 Ft
2
Total Structure
7,354 Ft
2
Total Heated
4,888 Ft
2
1st Floor
546 Ft
2
2nd Floor
1,920 Ft
2

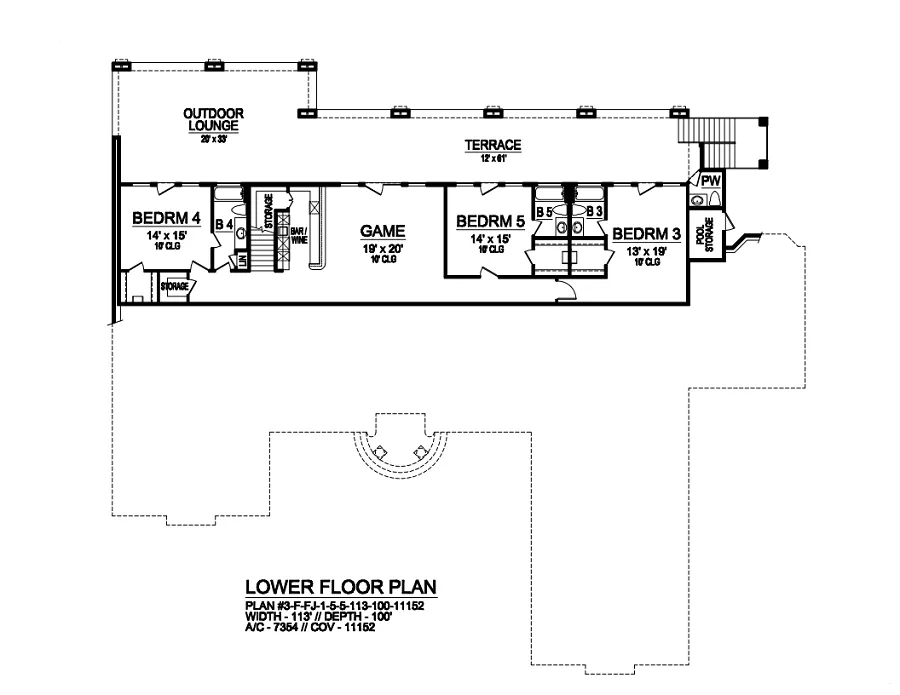

Lower Floor
5
Bedrooms
5.5
Bathrooms
3
Garage
1
Stories
113' 0"
Width
100' 0"
Depth
34' 0"
Height
12' 0"
Main Floor Ceiling
9' 0"
Upper Floor Ceiling
2x6
Framing
Stick
Roof Framing
8
Primary Roof Pitch
Single
Dwelling Number

Unheated Living Space
857 Ft
2
Garage
Collections


Plan Package Options

 Select Plan Package
$3,365
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$3,365
$3,545
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$3,545
$5,050
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$5,050
 Need To Reverse Plan? (Optional)
$300
Readable Reverse

Reverse house plans with readable text and dimensions

$300
  Select Foundation Option
  Add-Ons (Optional)

Ground shipping within the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your house plan

Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total
$0
Free Shipping

Note: Note:Foundation is a combination slab and walk-out basement.
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
