Summer Sale | Take 15% Off ALL House Plans | Code: SUMMER24
Summer Sale | Take 15% Off ALL House Plans | Code: SUMMER24
Sq Ft
4,328 FT²
Bed
4
Bath
4.5
Stories
2
Garage
3
Depth
92'
Width
79'
On Sale
$1,287.75
$1,515.00
© copyright by designer

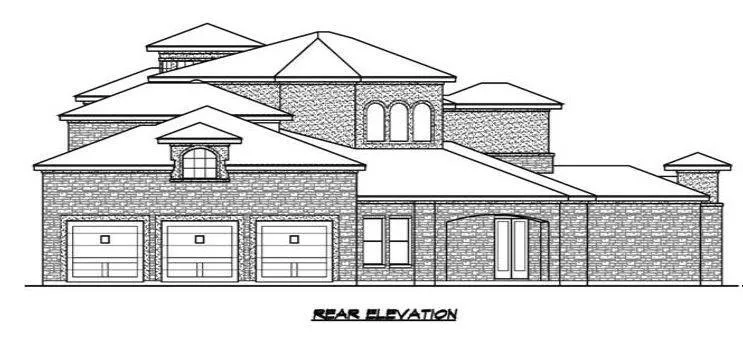

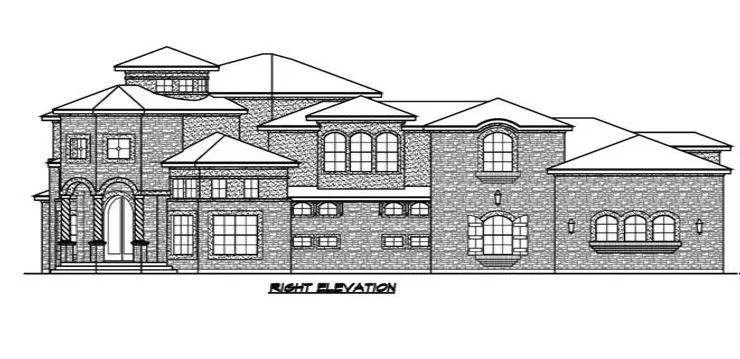

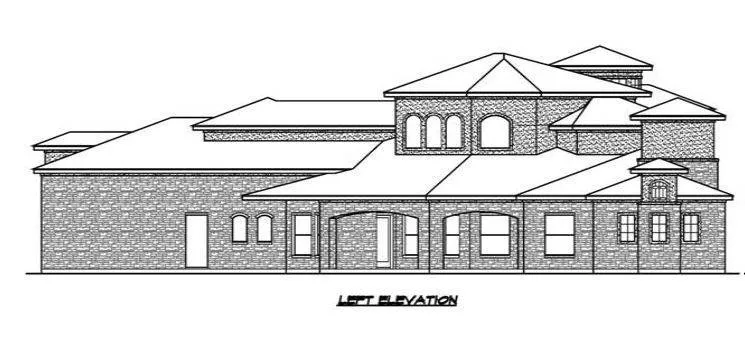

View All 5 Images | Photographs may reflect modified home
Sq Ft
4,328 FT²
From
$1,287.75
Bed
4
Bath
4.5
Stories
2
Garage
3
Depth
92'
Width
79'

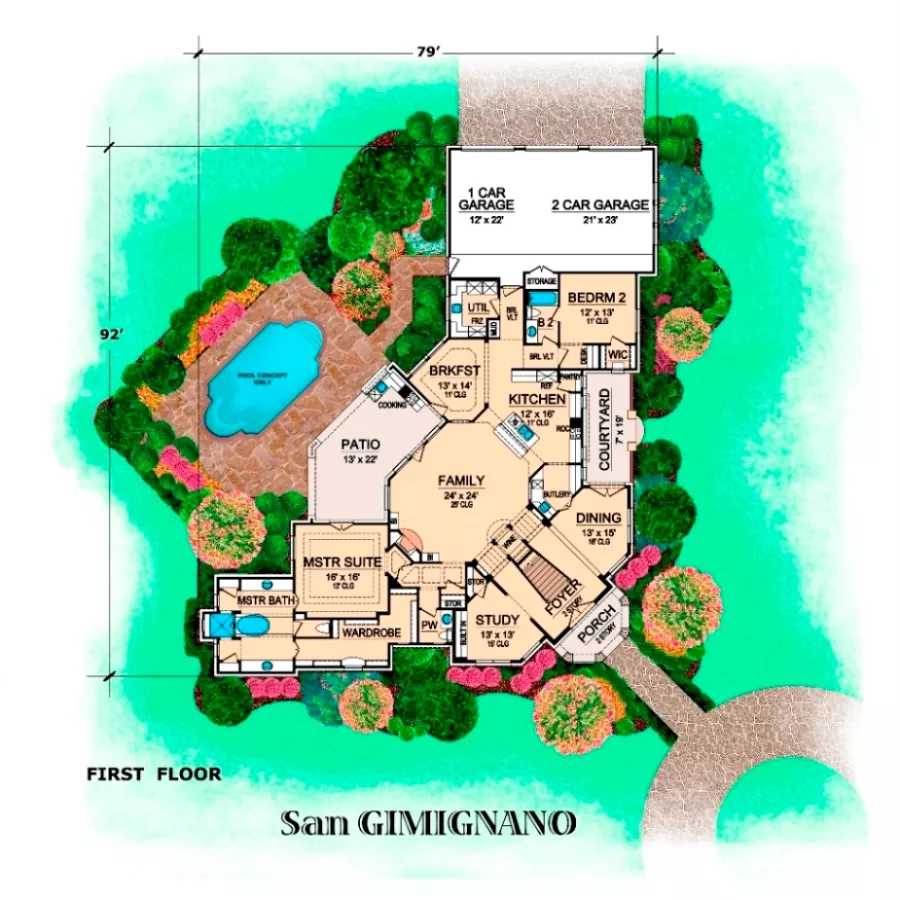

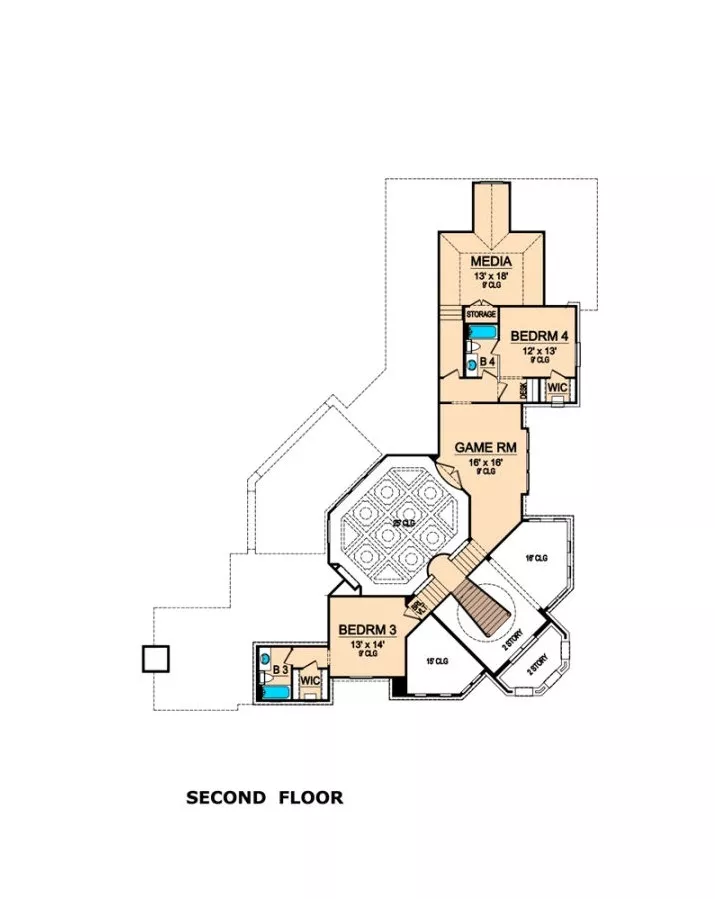

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

This elegant Mediterranean luxury mansion offers many different roof and ceiling accents. As you enter the two-story foyer through the large decorative pillars, your eyes are drawn to staircase and wine area located centrally in the foyer. To the left of the foyer is the formal dining room with double French doors leading to the butlery, kitchen and pantry, for ease in serving dinner guests. The larger set of double French doors in the dining room, gives you access to the outdoor courtyard, perfect for relaxing or enjoying a book. To the right of the foyer is the quiet study with its own built-ins and storage. Beyond the foyer is the two-story family room with its warming and cozy fireplace; it features many built-ins and a wall of windows looking out onto the well manicured lawn and gardens. The patio has a built-in grilling area, with doors that lead into the master suite, family room, and breakfast nook. A breakfast bar in the gourmet kitchen helps transfer you from the family room to the kitchen, and it adds to the counter space. A family bedroom with a walk-in closet, a full bath, and a built-in desk is located behind the kitchen and can be converted to a guest suite or in-law suite. The three car garage, consisting of a one car garage and a two car garage offers plenty of storage and easy access to the utility/mud room complete this portion of this first floor. On the other side of the family room is the master suite which features 12' trey ceilings and a luxurious master bath, complete with his and hers vanities, separate garden tub and shower, and a large wardrobe. On the second floor are two family bedrooms with full baths and walk-in closets, that are accompanied by a media room and a game room. At the top of the stairs you'll enjoy the view of the family room and foyer down below, and that wraps up this luxury Mediterranean house.


FEATURES & DETAILS

Kitchen features
Butler's Pantry
Nook / Breakfast Area
Peninsula / Eating Bar
Bedroom features
Double Vanity Sink
Primary Bdrm Main Floor
Separate Tub and Shower
Split Bedrooms
Walk-in Closet
Exterior features
Covered Front Porch
Covered Rear Porch
Foundation Options
Slab
Additional features
2 Story Volume
Dining Room
Family Room
Fireplace
Foyer
Home Office
Laundry 1st Fl
Library/Media Rm
Garage Location
Rear
Garage Options
Attached
Rear-entry
5,620 Ft
2
Total Structure
4,328 Ft
2
Total Heated
2,959 Ft
2
1st Floor
1,369 Ft
2
2nd Floor
4
Bedrooms
4.5
Bathrooms
3
Garage
2
Stories
79' 0"
Width
92' 0"
Depth
35' 0"
Height
11' 0"
Main Floor Ceiling
9' 0"
Upper Floor Ceiling
2x4
Framing
Stick
Roof Framing
5
Primary Roof Pitch
Single
Dwelling Number

Unheated Living Space
837 Ft
2
Garage
94 Ft
2
Porch
361 Ft
2
Patio
Collections


Plan Package Options

 Select Plan Package
$1,365
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,365
$2,050
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$2,050
$2,360
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$2,360
 Need To Reverse Plan? (Optional)
$175
Readable Reverse

Reverse house plans with readable text and dimensions

$175
  Select Foundation Option
  Add-Ons (Optional)

Ground shipping within the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your house plan

Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
